Fuel Pump Control Module-Chassis Cab with Aft of Axle Fuel Tank

WARNING: This page is about a different car, the 2012 Ford F550 Super Duty and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

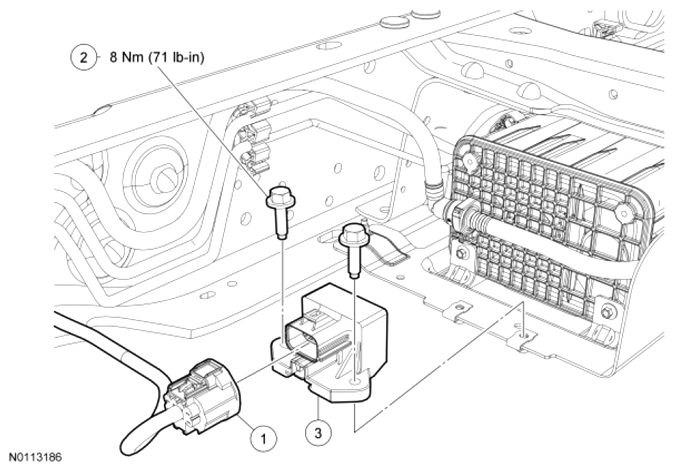

Fig 1: Fuel Pump Control Module, Bolt And Electrical Connector With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Fuel pump control module electrical connector (part of 14A464)
2	N804804	Fuel pump control module bolt (2 required)
3	9D412	Fuel pump control module
