6.8L Engine
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

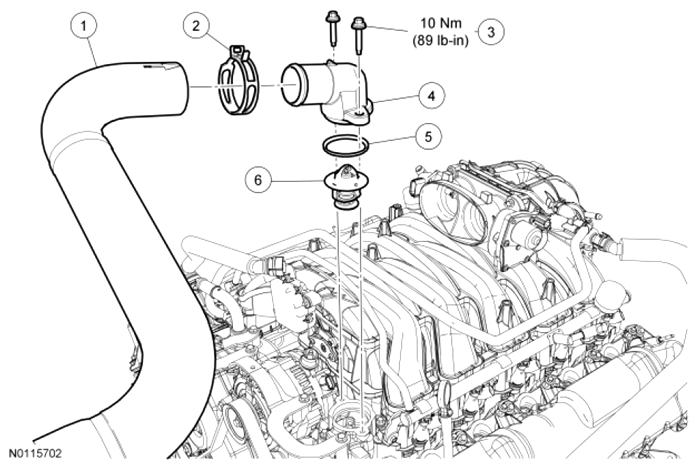

| Item |
Part Number |
Description |
| 1 |
8260 |
Upper radiator hose |
| 2 |
- |
Upper radiator hose clamp (part of 8260) |
| 3 |
W503279 |
Coolant outlet connection bolts (2 required) |
| 4 |
8592 |
Coolant outlet connection |
| 5 |
8255 |
Thermostat O-ring seal |
| 6 |
8575 |
Thermostat |
