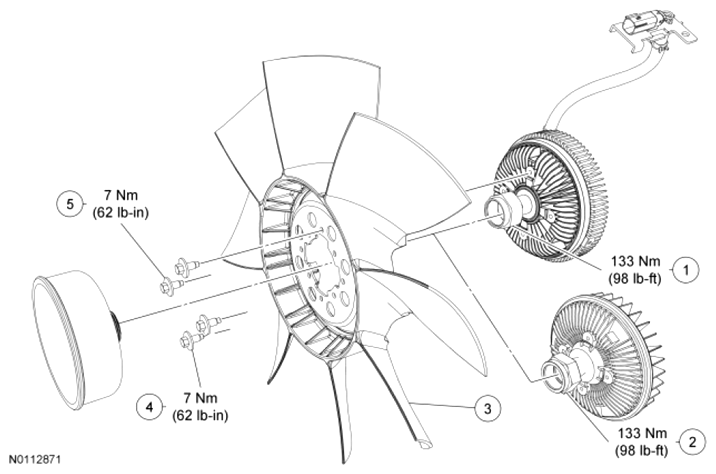

Cooling Fan Assembly
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
8A616 |
Cooling fan clutch (6.2L engine) |
| 2 |
8A616 |
Cooling fan clutch (6.8L engine) |
| 3 |
8600 |
Cooling fan |
| 4 |
W503930 |
Cooling fan clutch bolts (6.2L engine) (4 required) |
| 5 |
N602527 |
Cooling fan clutch bolts (6.8L engine) (4 required) |
