Cooling Fan Assembly - 6.8L Engine

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

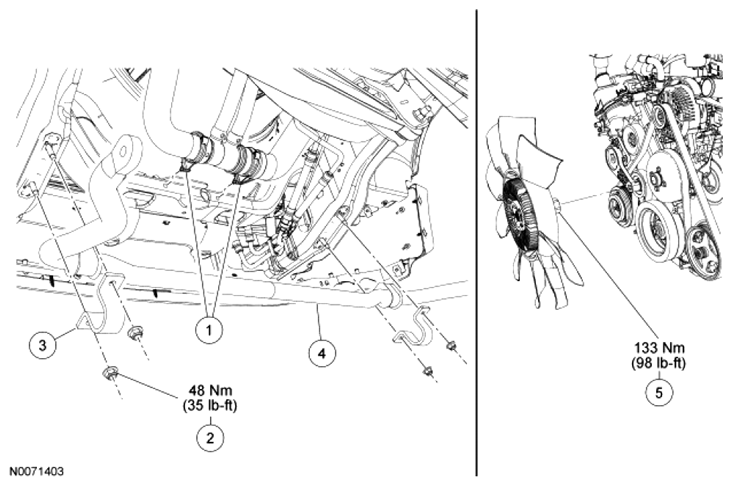

Fig 1: Exploded View Of Cooling Fan Assembly With Torque Specifications - 6.8L (3V) Engine

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8W287	Lower radiator hose position retainers
2	W712045	Front stabilizer bar nut (4 required)
3	3B353	Front stabilizer bar bracket (2 required)
4	5494	Front stabilizer bar
5	-	Cooling fan and clutch assembly
