6.2L Engine

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

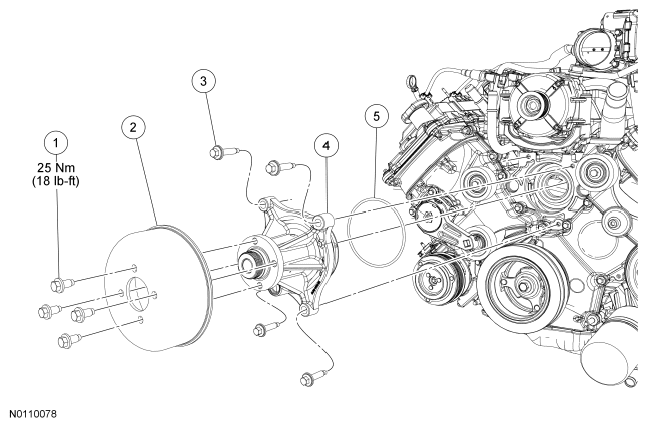

Fig 1: Coolant Pump Replacement Components With Torque Specifications - 6.2L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N806282	Coolant pump pulley bolt (4 required)
2	8A258	Coolant pump pulley
3	W503297	Coolant pump bolt (4 required)
4	8501	Coolant pump
5	391108	Coolant pump O-ring seal
