Differential Carrier
WARNING: This page is about a different car, the 2012 Ford Pickup and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS CHART
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-A) |
|
| Gauge, Clutch Housing 308-021 (T75L-4201-A) |
|
| Installer, Differential Shim 205-228 (T85T-4067-AH) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Clear Silicone Rubber TA-32 |
ESB-M4G92-A |
| Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A and GL-5 |

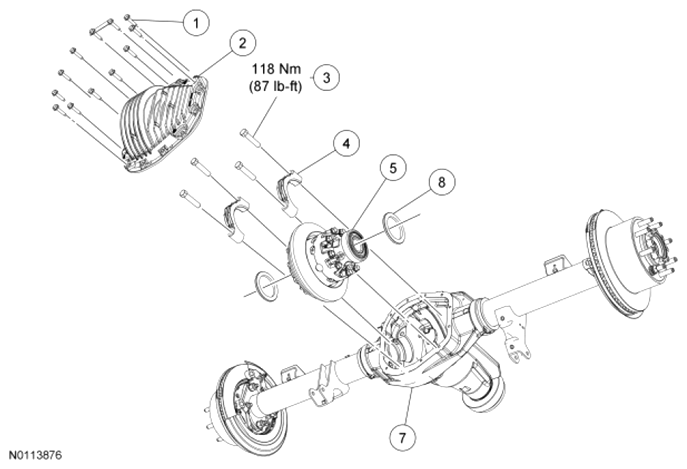

| Item | Part Number | Description |
|---|---|---|
| 1 | 4346 | Differential cover bolts (12 required) |
| 2 | 4033 | Differential cover |
| 3 | - | Differential bearing cap bolt (part of 4010) (4 required) |
| 4 | - | Differential bearing cap (part of 4010) (2 required) |
| 5 | 4067 | Differential assembly |
| 6 | 4204 | Differential carrier shims (2 required) |
| 7 | 4010 | Differential housing |
