Instrument Panel Cluster (IPC) Lens: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

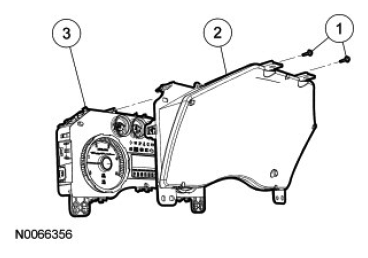

Fig 1: Identifying Instrument Panel Cluster Lens Related Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N805589	Instrument Panel Cluster (IPC) lens and mask screws (2 required)
2	10890	IPC lens and mask assembly
3	10849	IPC
