Wheel Studs - Dual Rear Wheel (DRW): Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS CHART

C-Frame and Screw Assembly
211-023 (T74P-3044-A1)

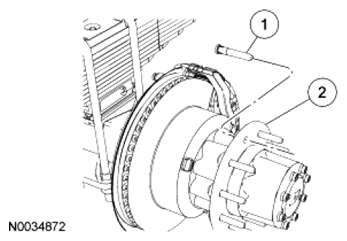

Fig 1: Identifying Wheel Studs - Dual Rear Wheel (DRW)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	390268	Wheel stud
2	1113	Wheel hub and brake disc assembly
