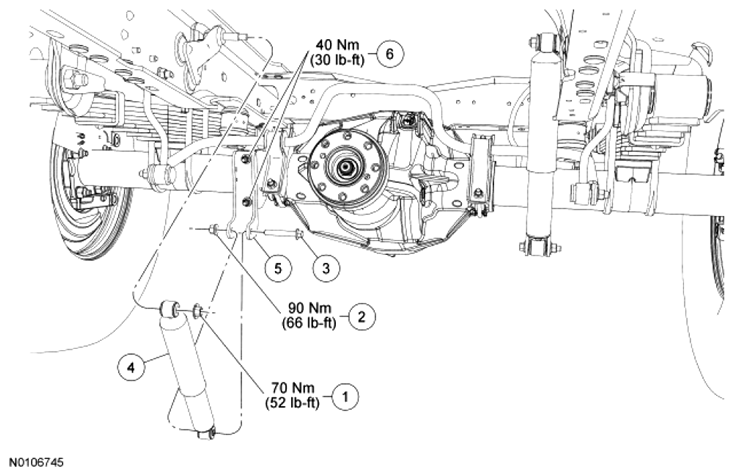

Shock Absorber: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N806085 |
Shock absorber upper nut and washer |
| 2 |
W520114 |
Shock absorber lower nut |
| 3 |
W500546 |
Shock absorber lower bolt |
| 4 |
18125 |
Shock absorber |
| 5 |
18178 |
Shock absorber bracket |
| 6 |
W520113 |
Shock absorber bracket nuts (2 required) |
