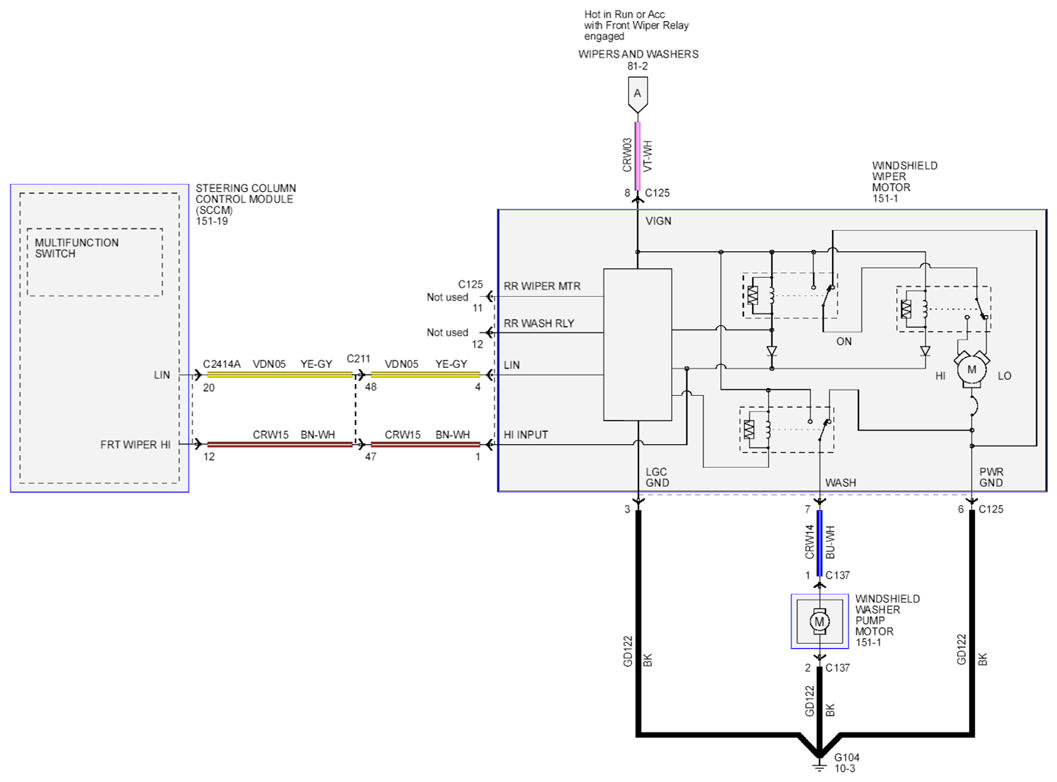

Fig 1: Wipers And Washers Circuit Diagram (View 1 Of 3)
Courtesy of FORD MOTOR CO.

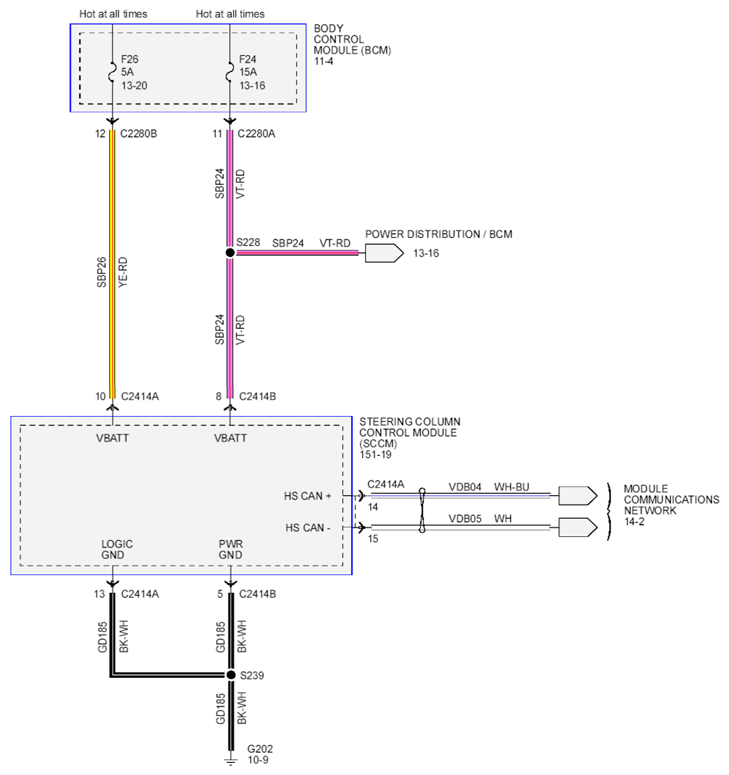

Fig 2: Wipers And Washers Circuit Diagram (View 2 Of 3)
Courtesy of FORD MOTOR CO.

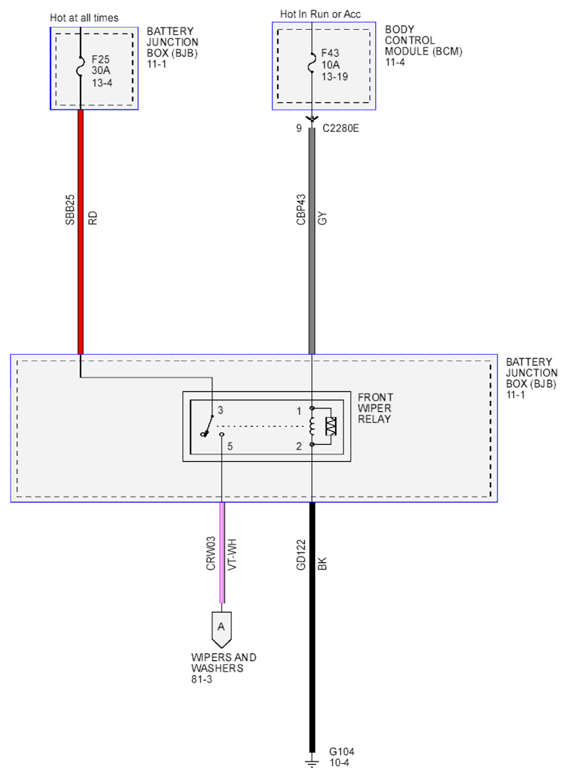

Fig 3: Wipers And Washers Circuit Diagram (View 3 Of 3)
