Narrow Frame Wide Frame Without Pickup Bed

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

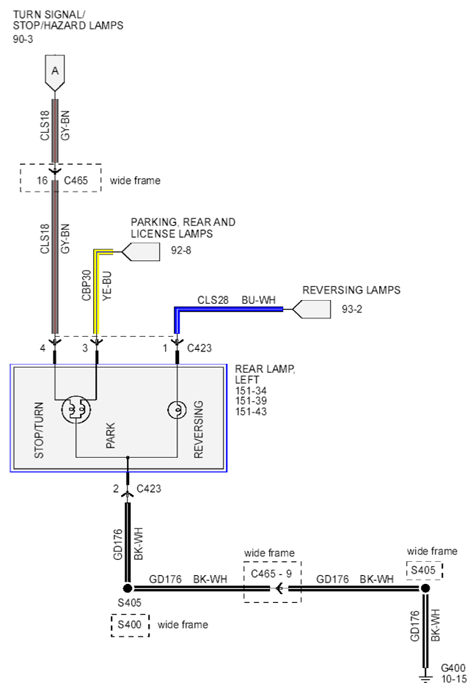

Fig 1: Turn Signal And Stop Hazard Lamps (Narrow Frame Wide Frame Without Pickup Bed) Circuit Diagram (View 5 Of 8)

Courtesy of FORD MOTOR CO.

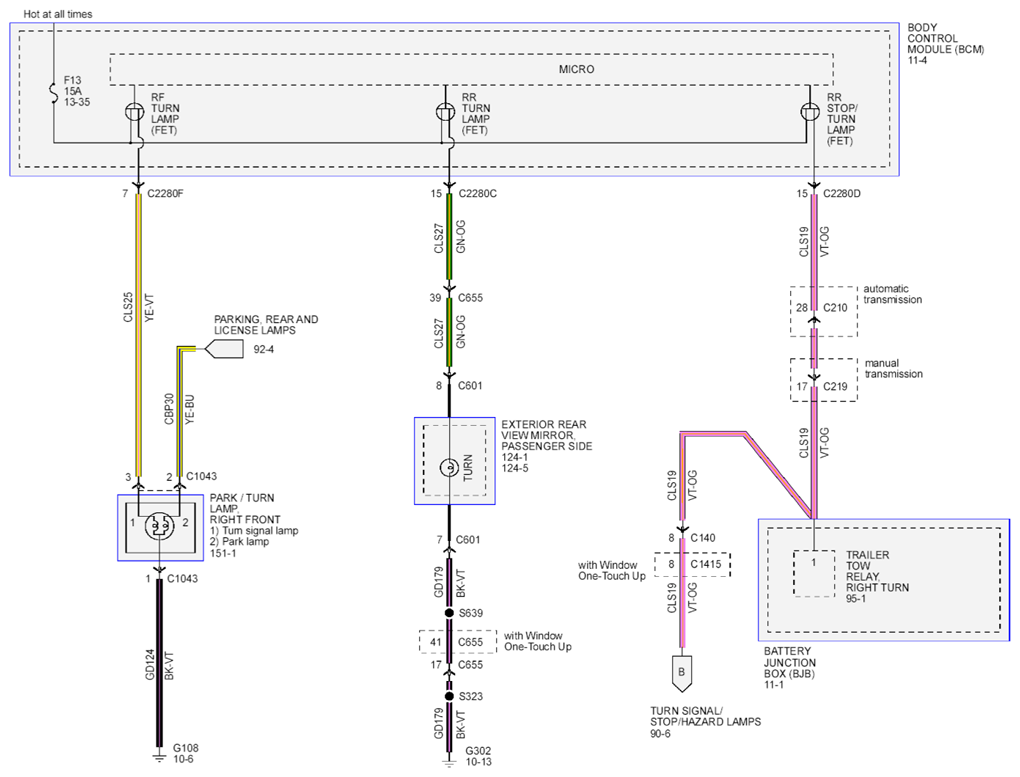

Fig 2: Turn Signal And Stop Hazard Lamps Circuit Diagram (View 6 Of 8)

Courtesy of FORD MOTOR CO.

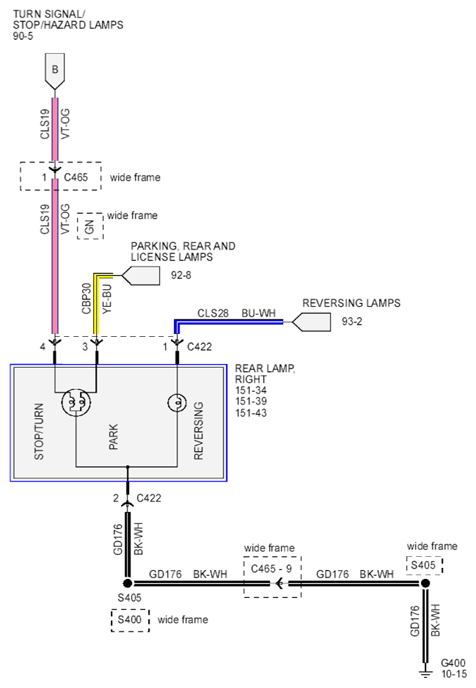

Fig 1: Turn Signal And Stop Hazard Lamps (Narrow Frame Wide Frame Without Pickup Bed) Circuit Diagram (View 8 Of 8)

Courtesy of FORD MOTOR CO.
