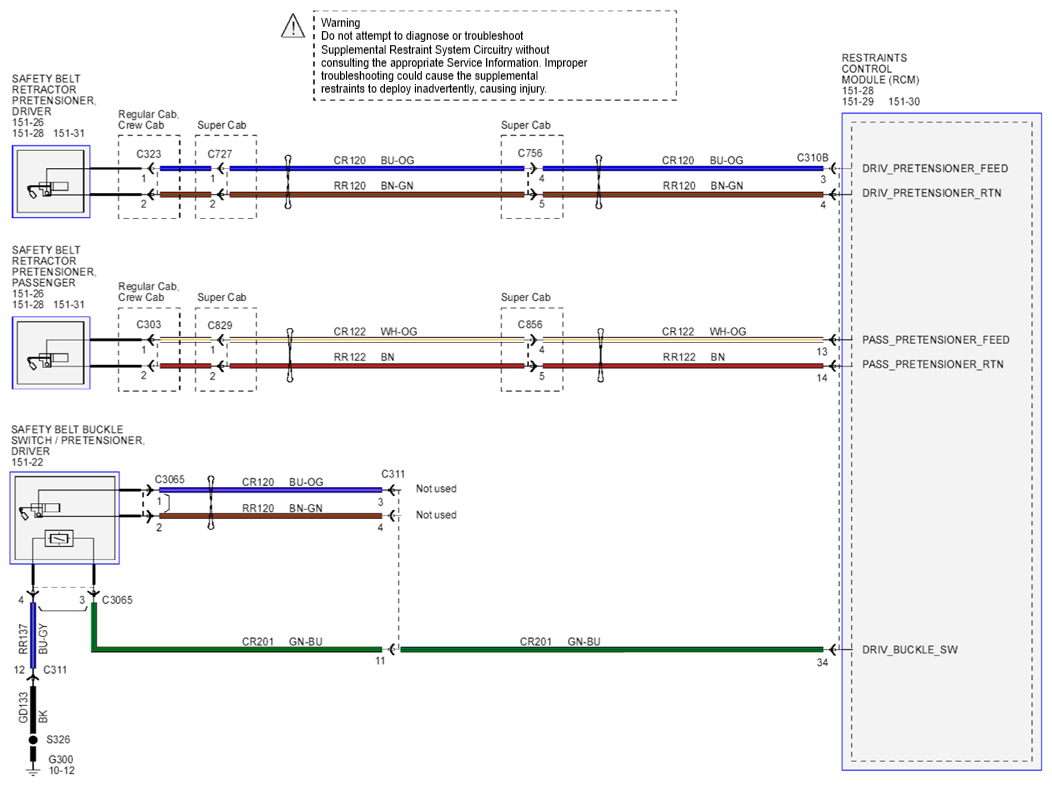

Fig 1: Supplemental Restraint System Circuit Diagram (View 1 Of 5)
Courtesy of FORD MOTOR CO.

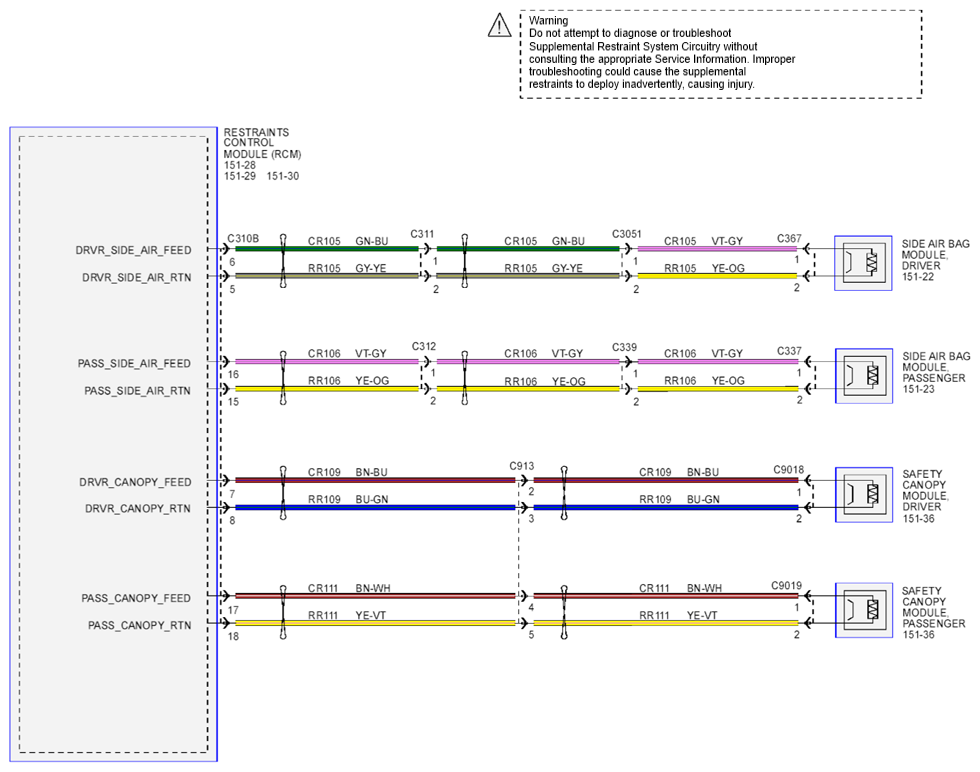

Fig 2: Supplemental Restraint System Circuit Diagram (View 2 Of 5)
Courtesy of FORD MOTOR CO.

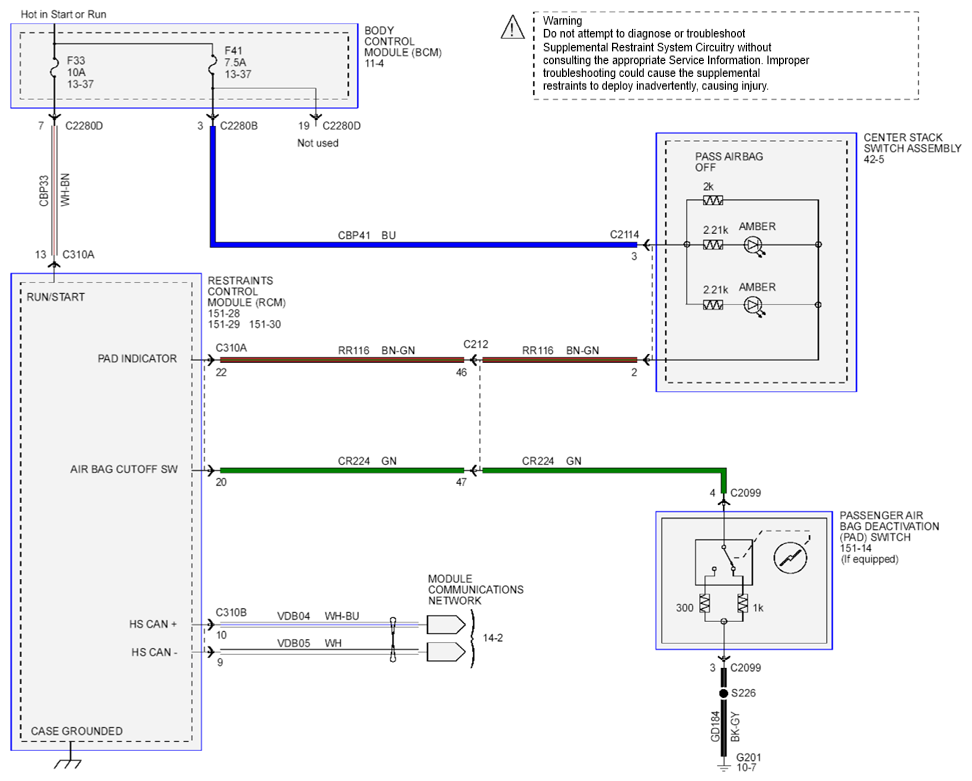

Fig 3: Supplemental Restraint System Circuit Diagram (View 3 Of 5)
Courtesy of FORD MOTOR CO.

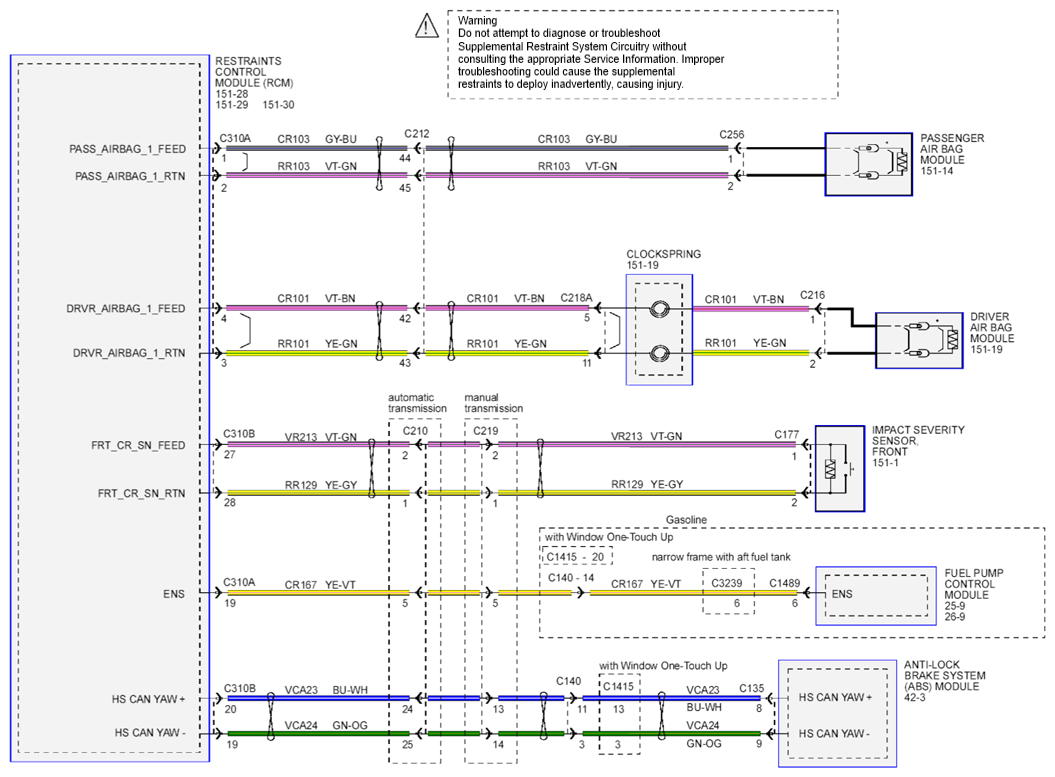

Fig 4: Supplemental Restraint System Circuit Diagram (View 4 Of 5)
Courtesy of FORD MOTOR CO.

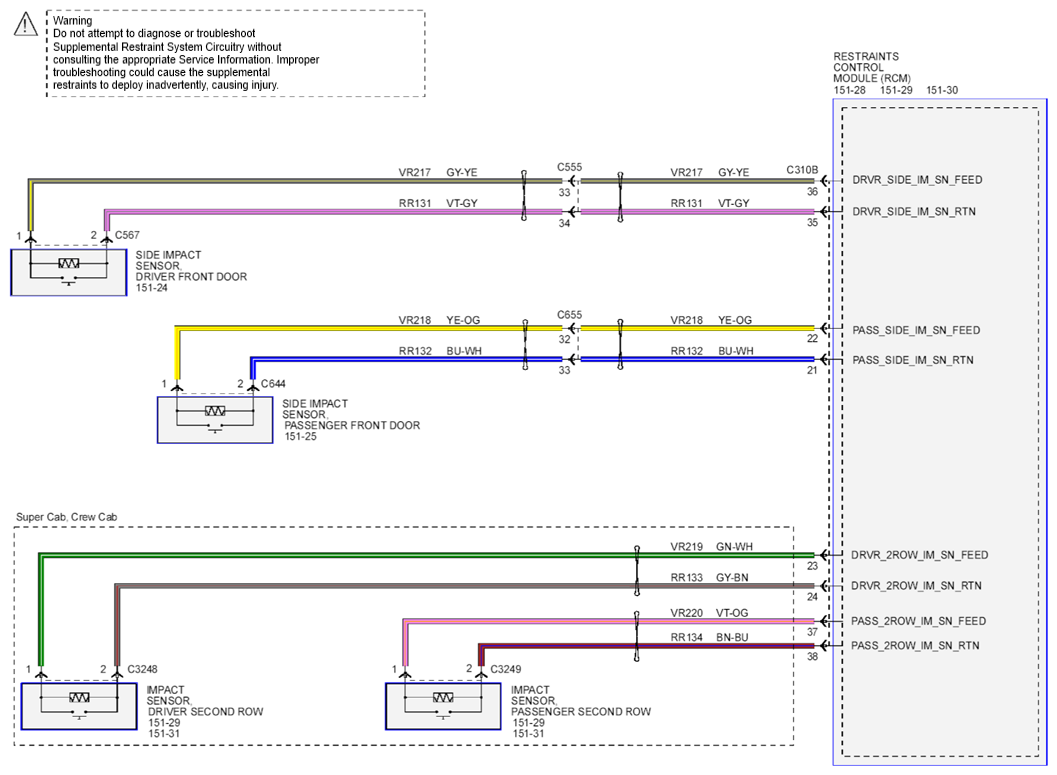

Fig 5: Supplemental Restraint System Circuit Diagram (View 5 Of 5)
