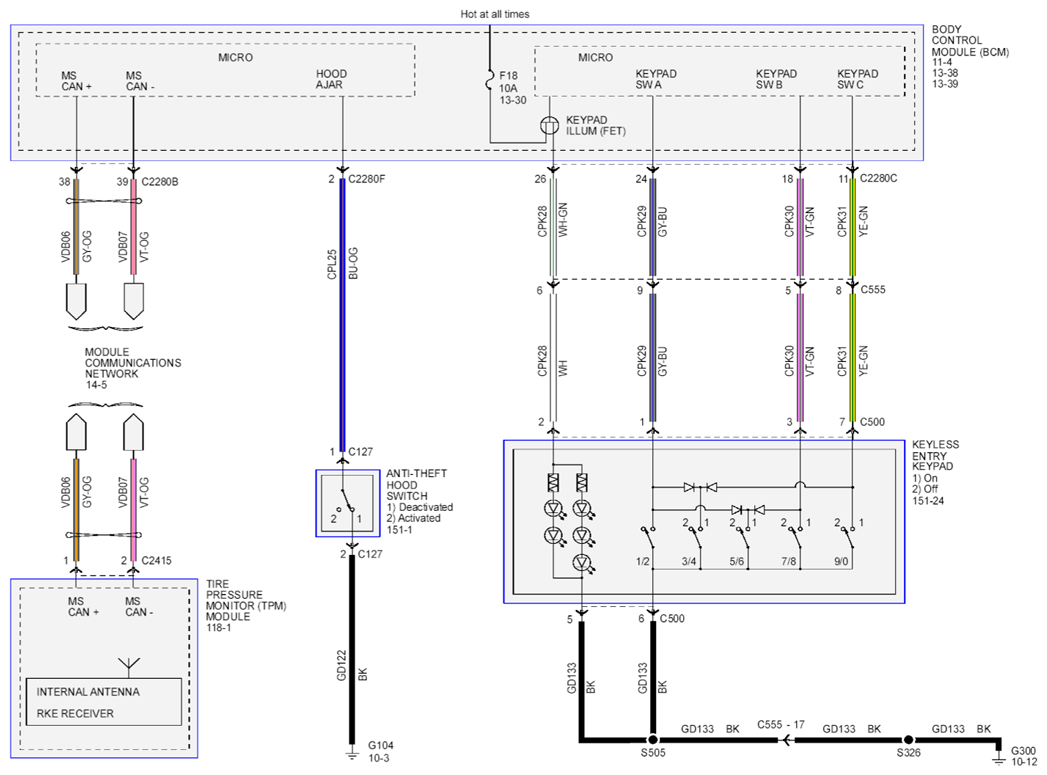

Fig 1: Remote Keyless Entry And Alarm Circuit Diagram (View 1 Of 5)
Courtesy of FORD MOTOR CO.

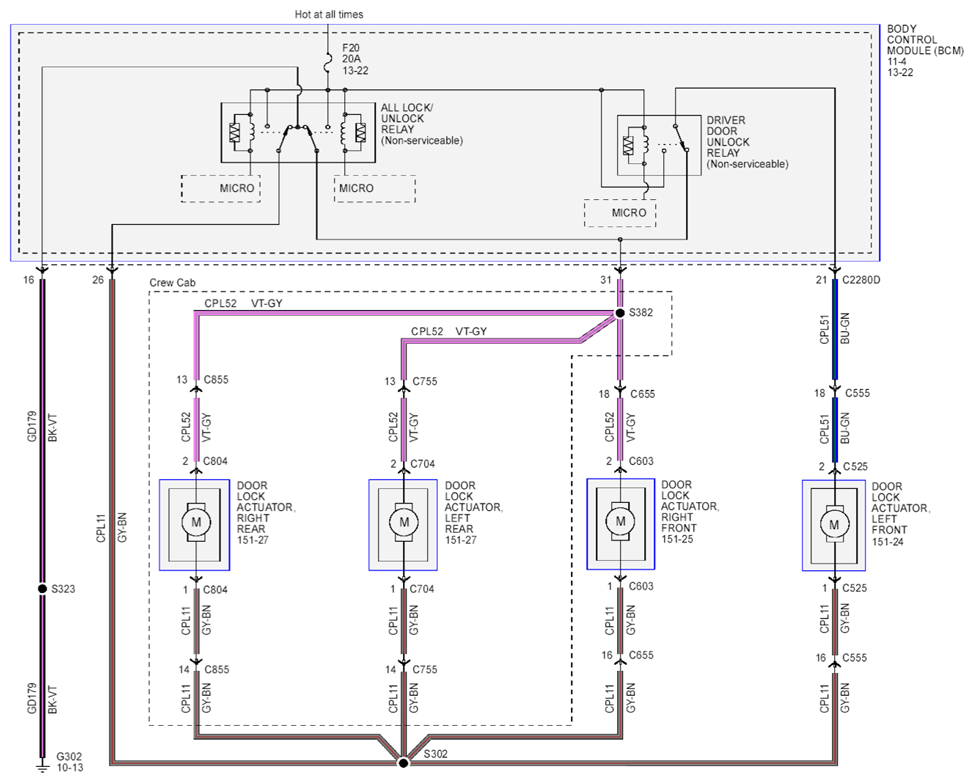

Fig 2: Remote Keyless Entry And Alarm Circuit Diagram (View 2 Of 5)
Courtesy of FORD MOTOR CO.

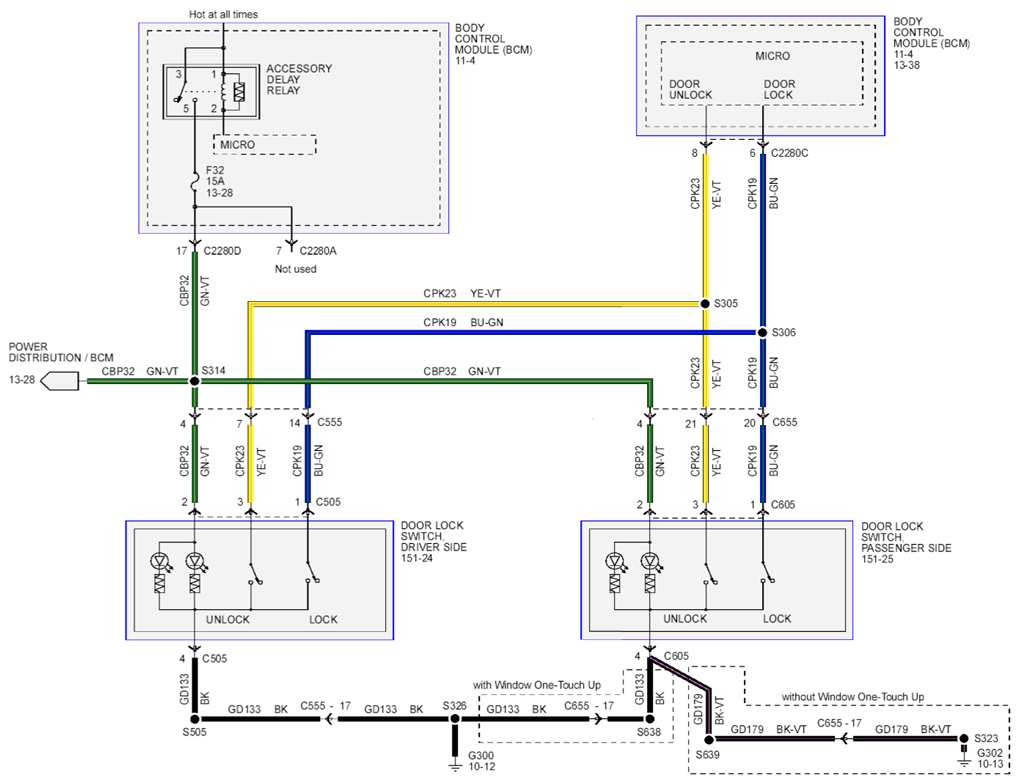

Fig 3: Remote Keyless Entry And Alarm Circuit Diagram (View 3 Of 5)
