10-Way Power Seat Without Memory - Driver

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

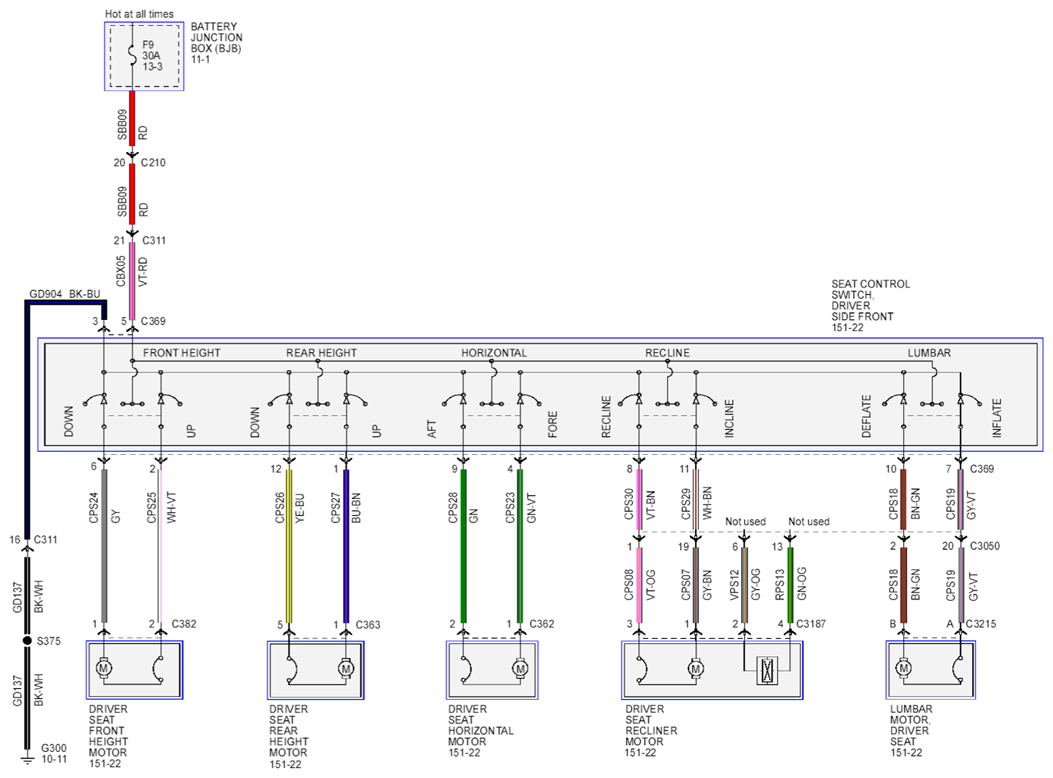

Fig 1: Power Seats Circuit Diagram (10-Way Power Seat Without Memory - Driver) (View 2 Of 3)
G07901527Courtesy of FORD MOTOR CO.
