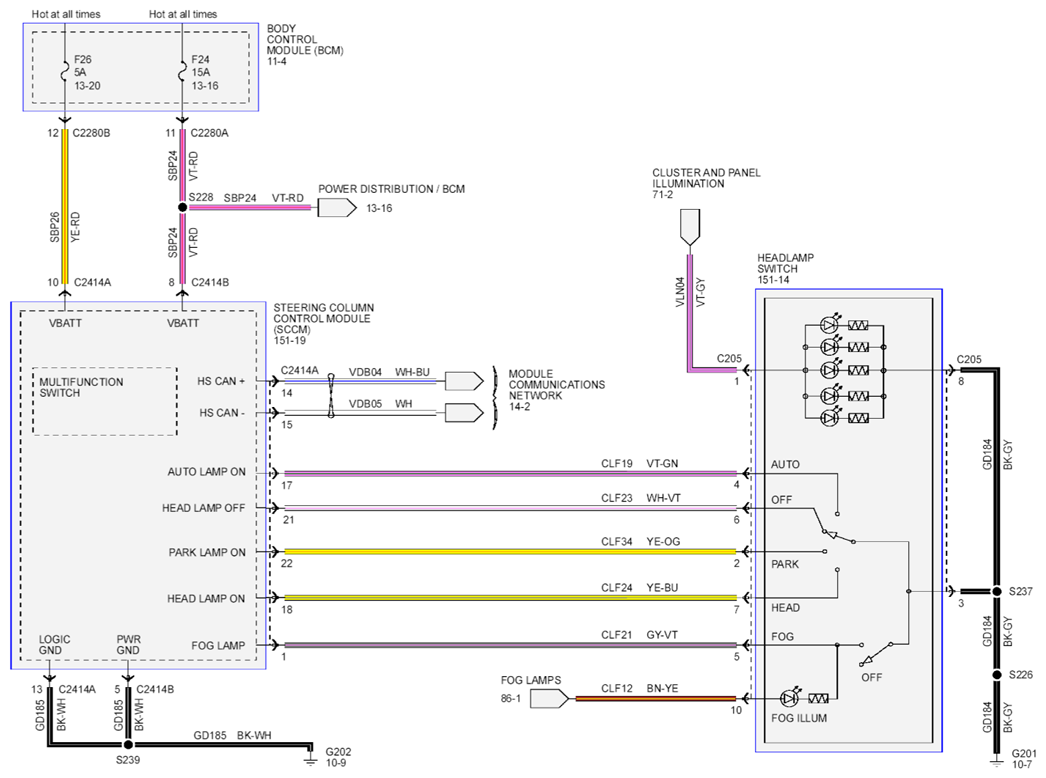

Fig 1: Parking Rear And License Lamps Circuit Diagram (View 1 Of 8)
Courtesy of FORD MOTOR CO.

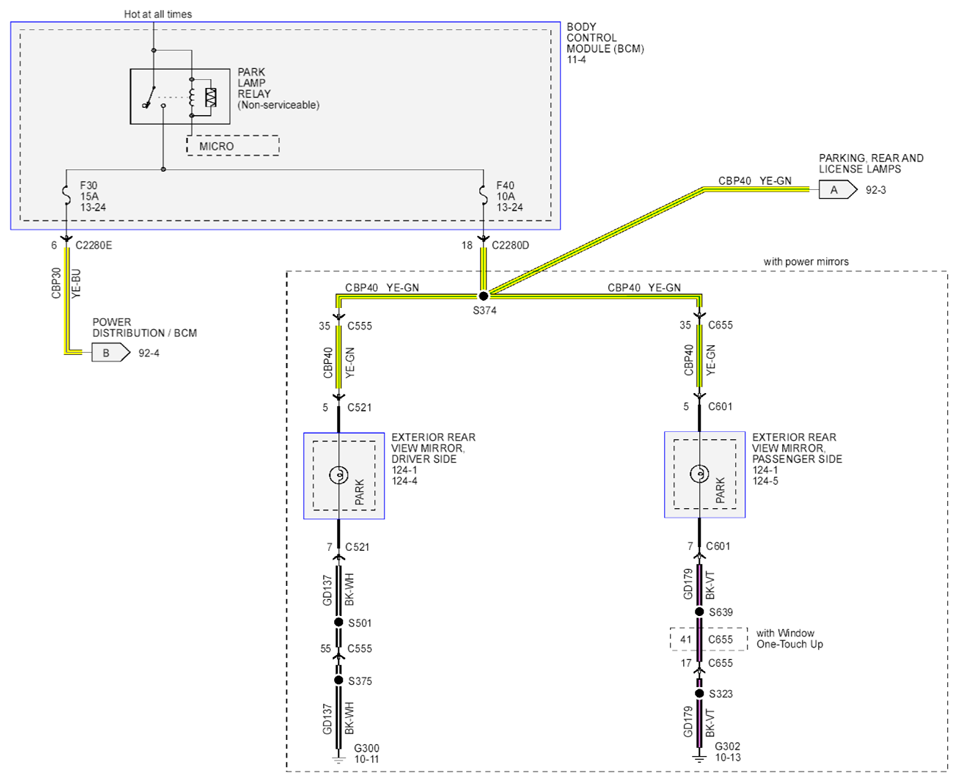

Fig 2: Parking Rear And License Lamps Circuit Diagram (View 2 Of 8)
Courtesy of FORD MOTOR CO.

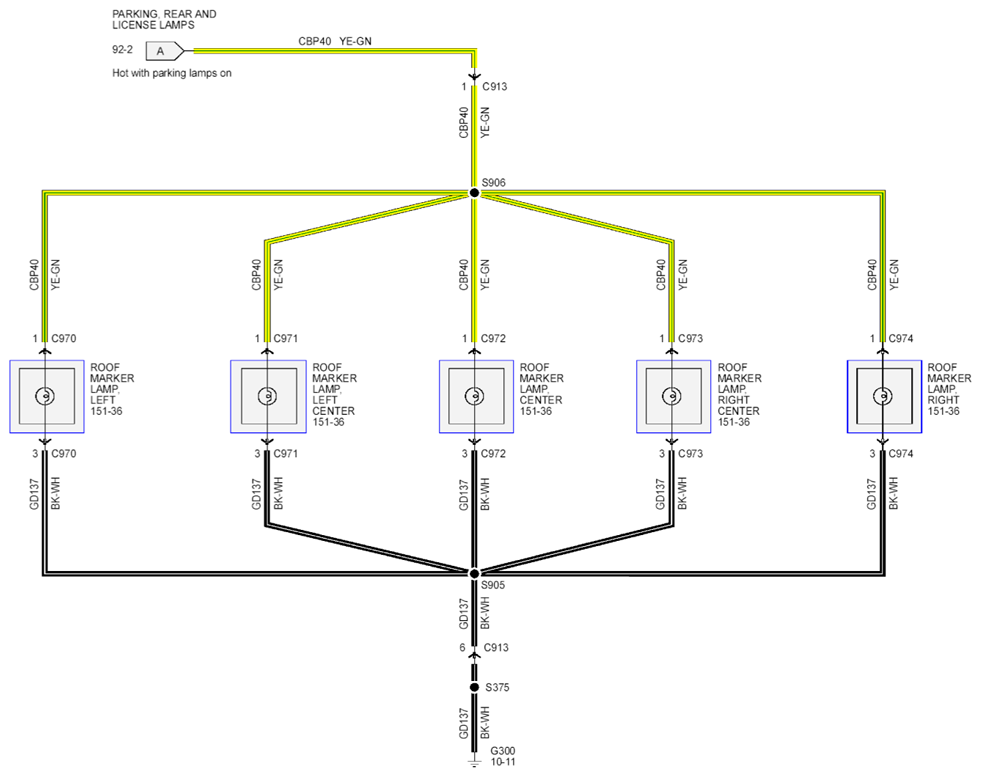

Fig 3: Parking Rear And License Lamps Circuit Diagram (View 3 Of 8)
Courtesy of FORD MOTOR CO.

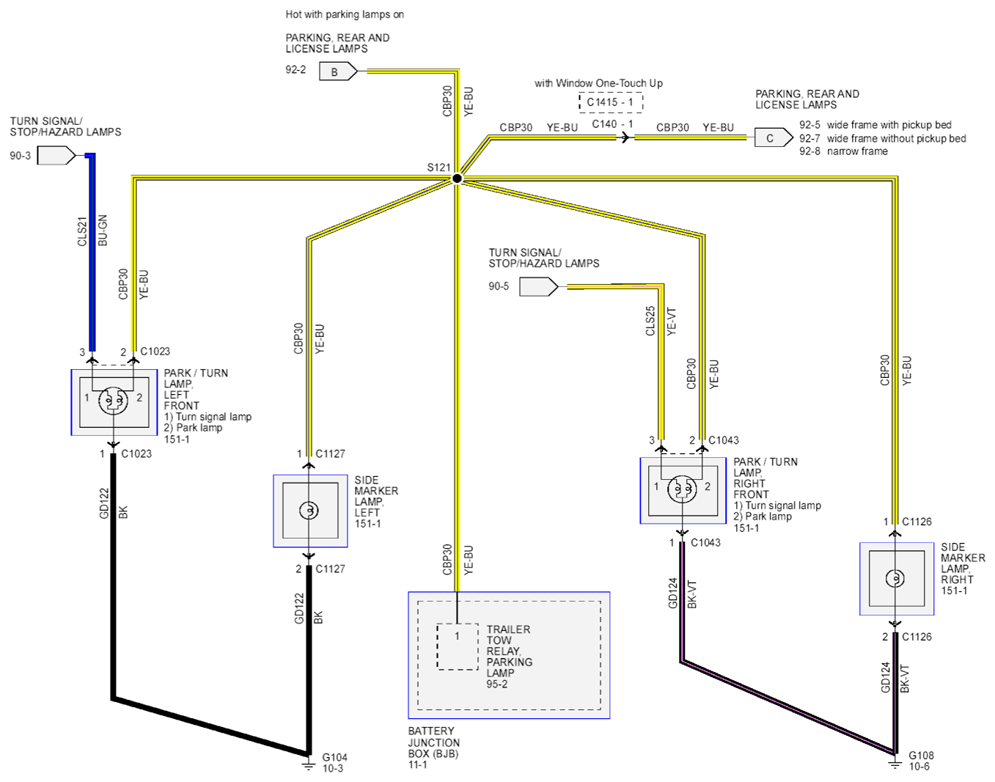

Fig 4: Parking Rear And License Lamps Circuit Diagram (View 4 Of 8)
