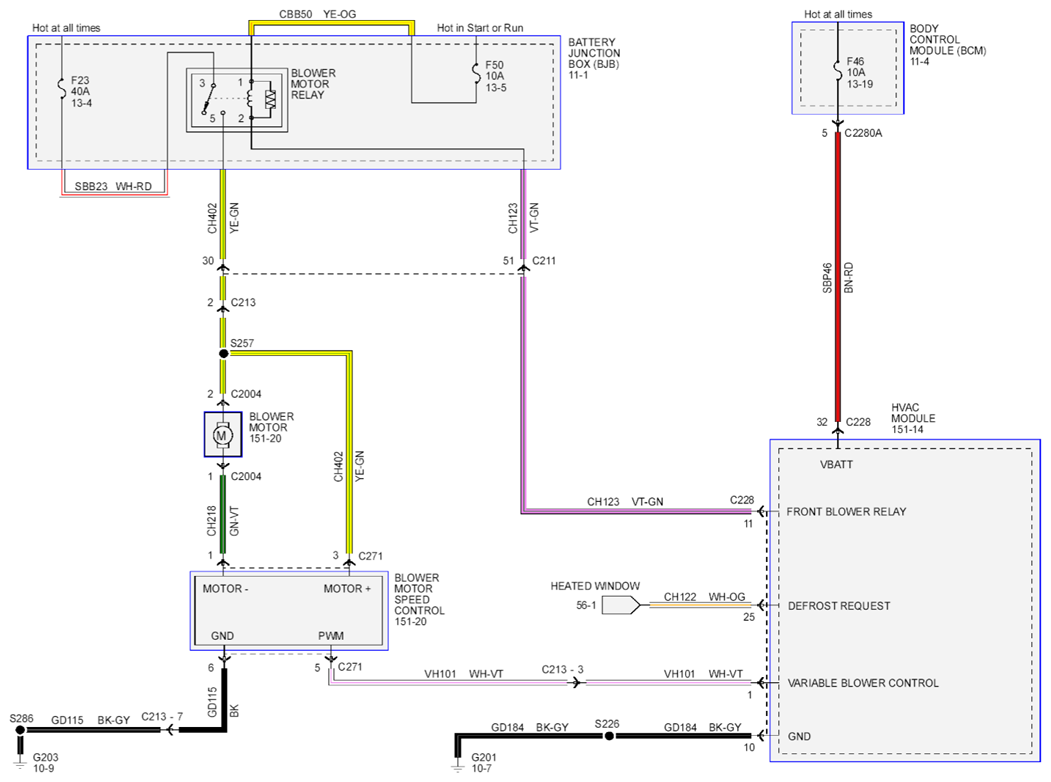

Fig 1: Manual Climate Control System Circuit Diagram (View 1 Of 6)
Courtesy of FORD MOTOR CO.

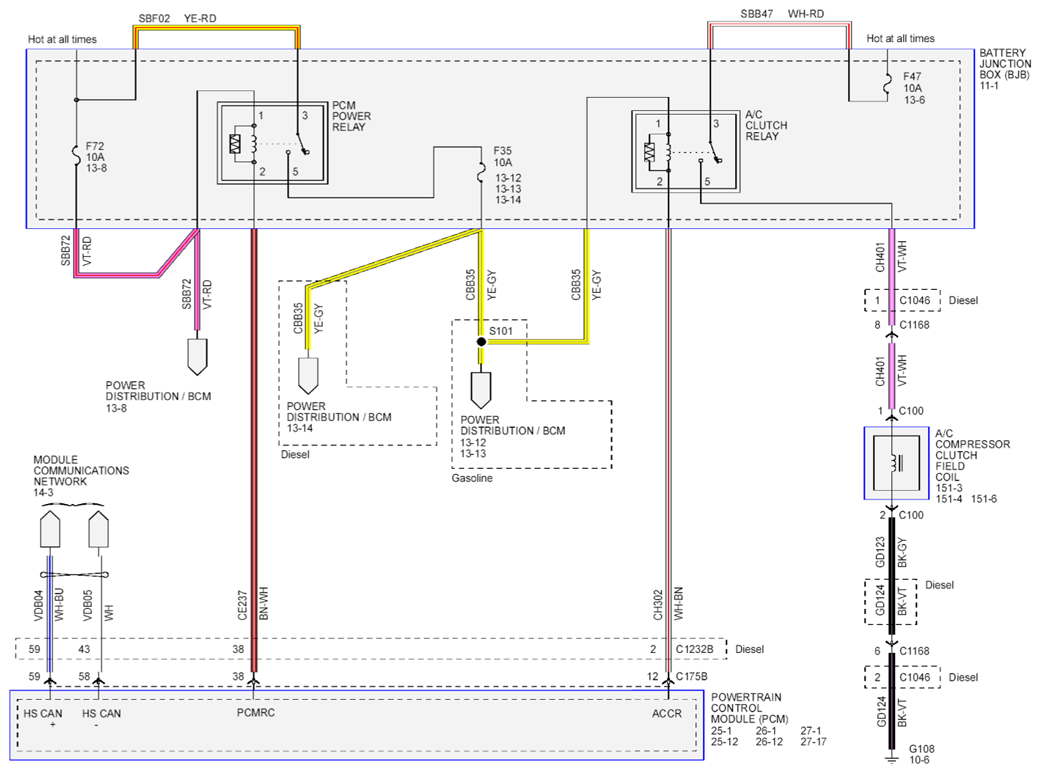

Fig 2: Manual Climate Control System Circuit Diagram (View 2 Of 6)
Courtesy of FORD MOTOR CO.

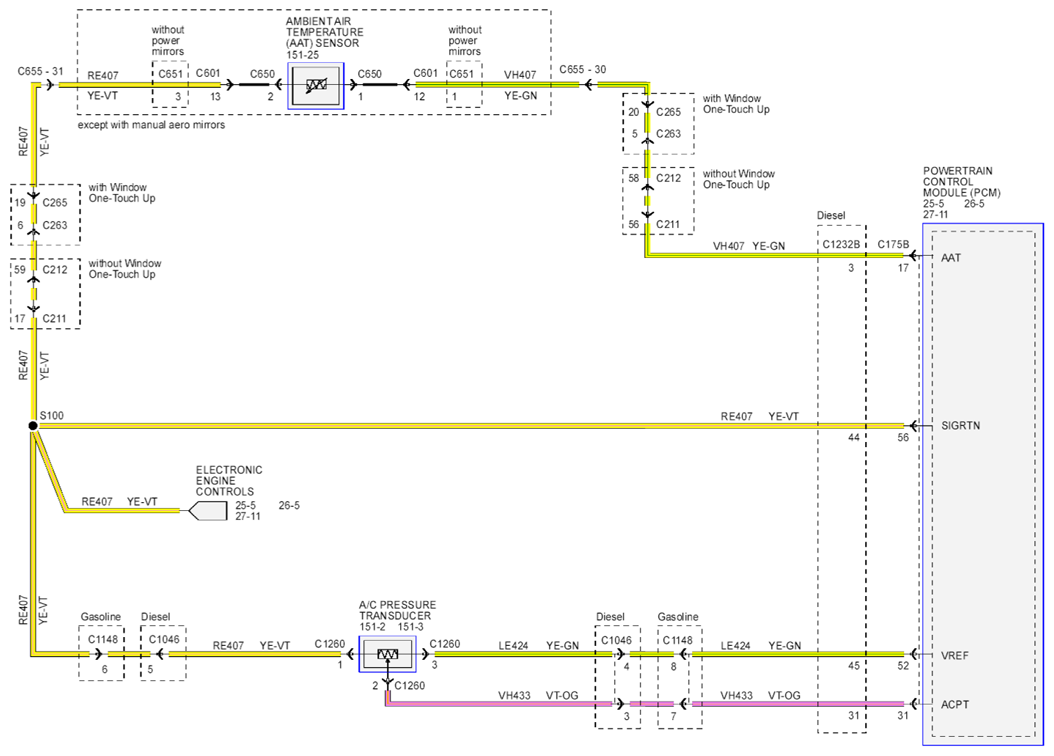

Fig 3: Manual Climate Control System Circuit Diagram (View 3 Of 6)
Courtesy of FORD MOTOR CO.

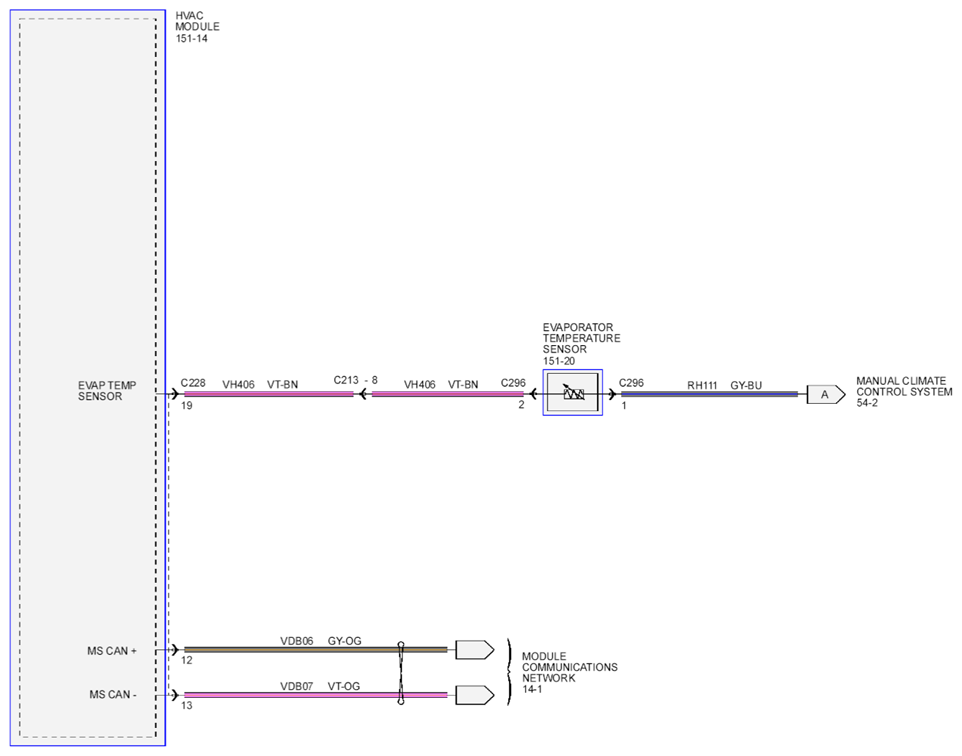

Fig 4: Manual Climate Control System Circuit Diagram (View 4 Of 6)
Courtesy of FORD MOTOR CO.

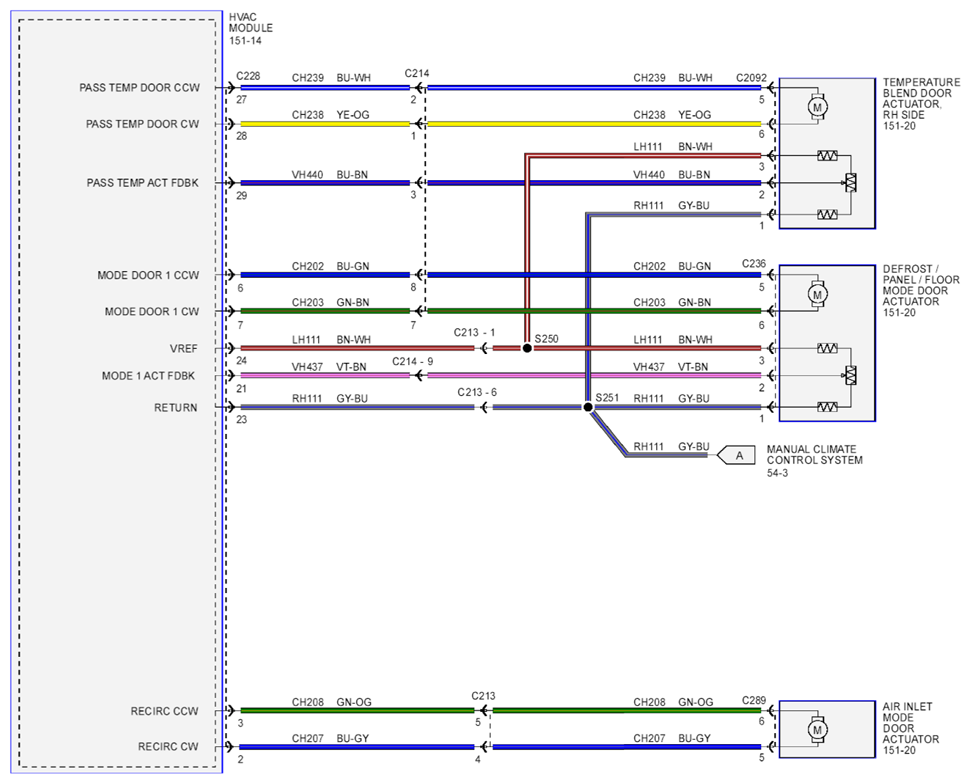

Fig 5: Manual Climate Control System Circuit Diagram (View 5 Of 6)
