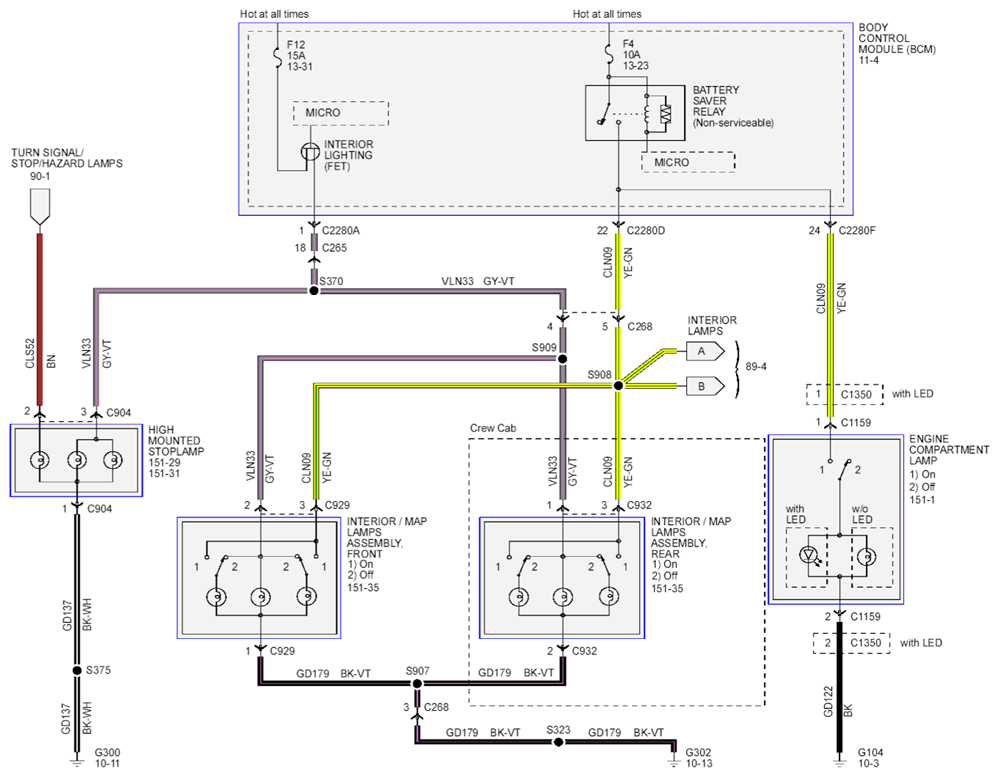

Fig 1: Interior Lamps (Super Cab, Crew Cab) Circuit Diagram (View 3 Of 7)

Courtesy of FORD MOTOR CO.

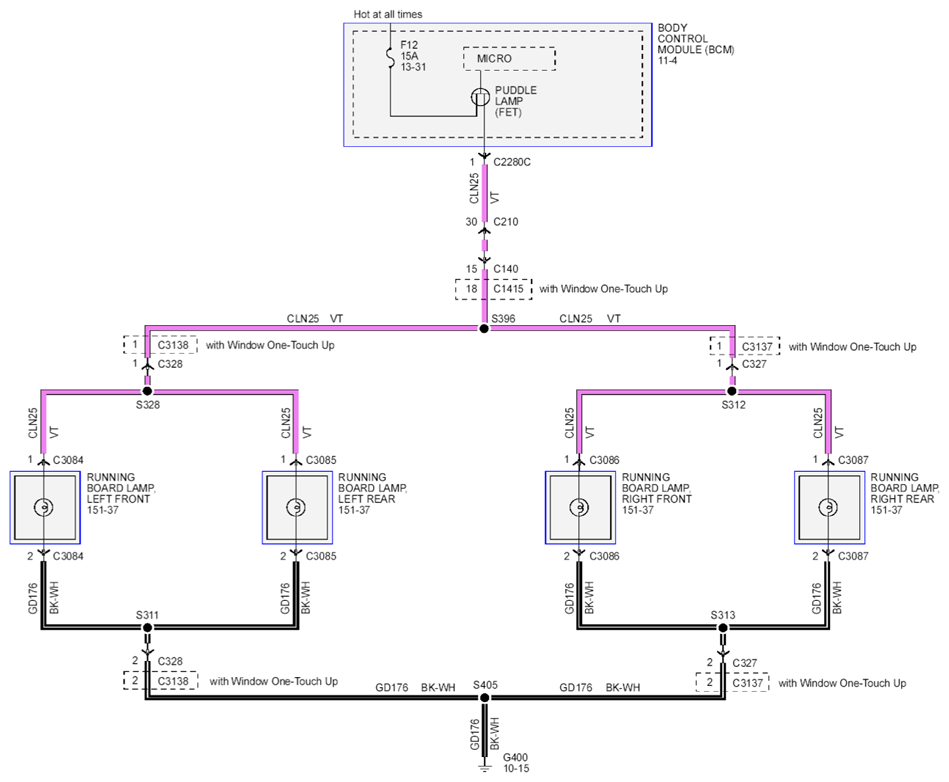

Fig 2: Interior Lamps Circuit Diagram (View 4 Of 7)

Courtesy of FORD MOTOR CO.

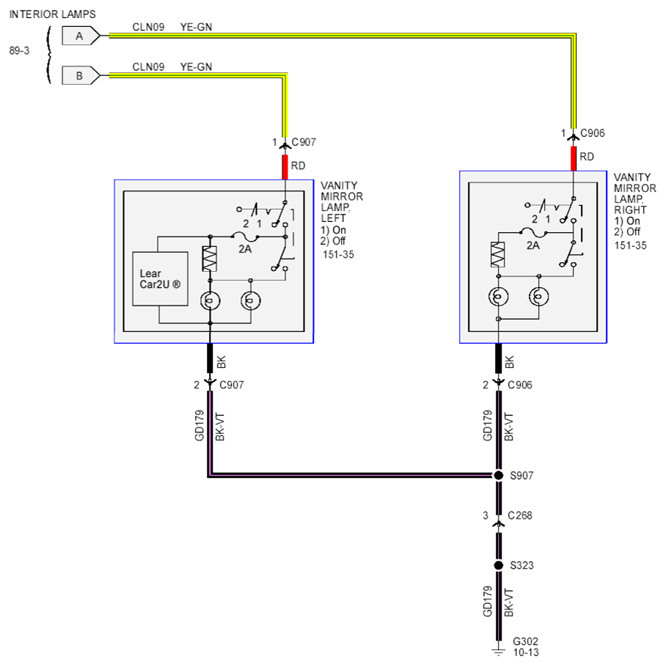

Fig 3: Interior Lamps Circuit Diagram (View 5 Of 7)

Courtesy of FORD MOTOR CO.
