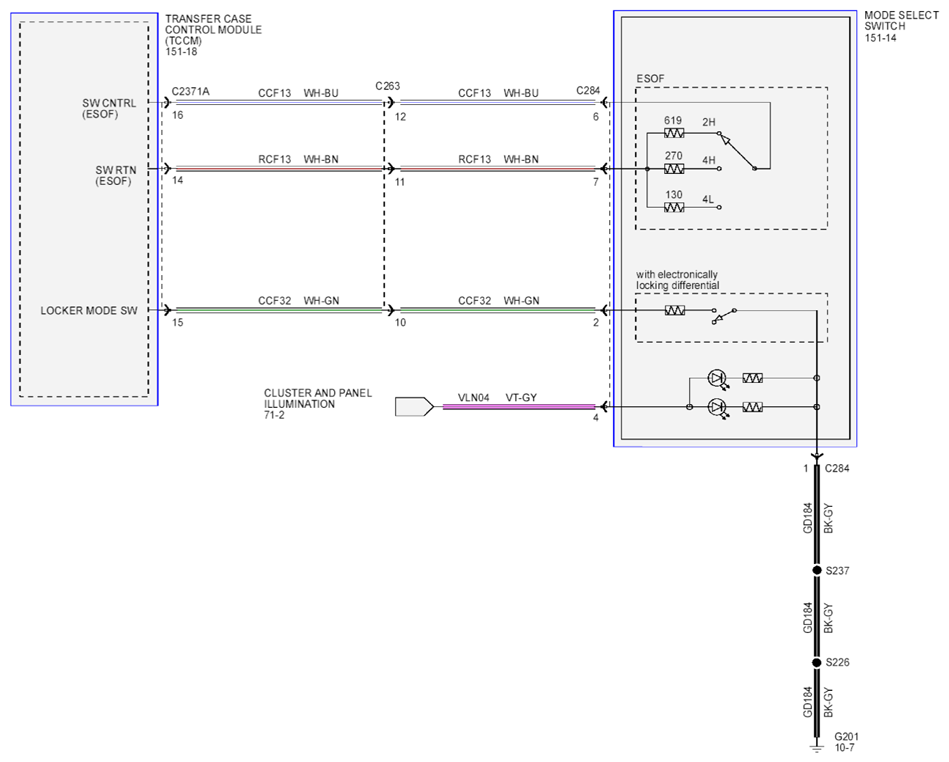

Fig 1: Four Wheel Drive Systems Circuit Diagram (View 1 Of 4)
Courtesy of FORD MOTOR CO.

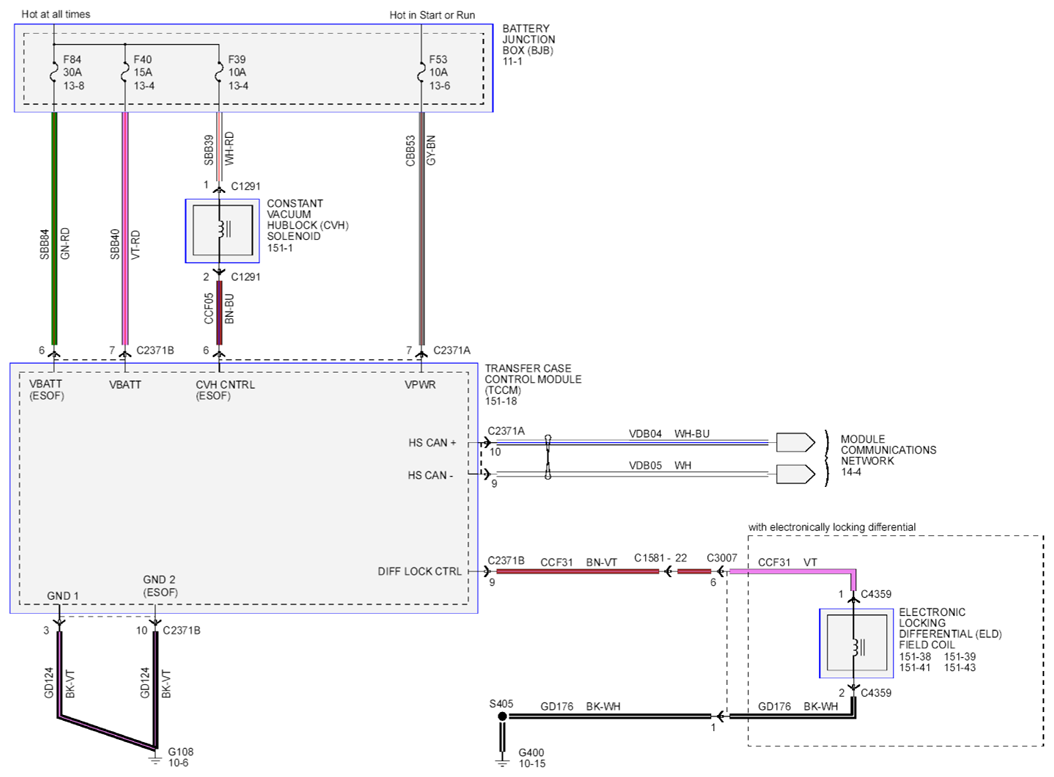

Fig 2: Four Wheel Drive Systems Circuit Diagram (View 2 Of 4)
Courtesy of FORD MOTOR CO.

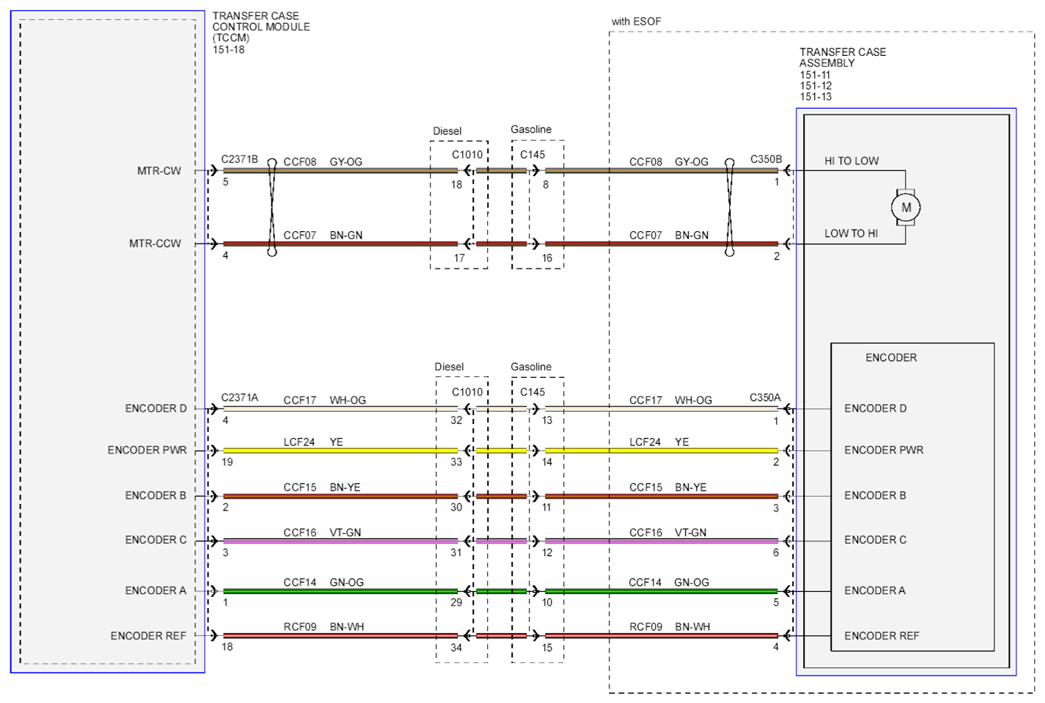

Fig 3: Four Wheel Drive Systems Circuit Diagram (View 3 Of 4)
Courtesy of FORD MOTOR CO.

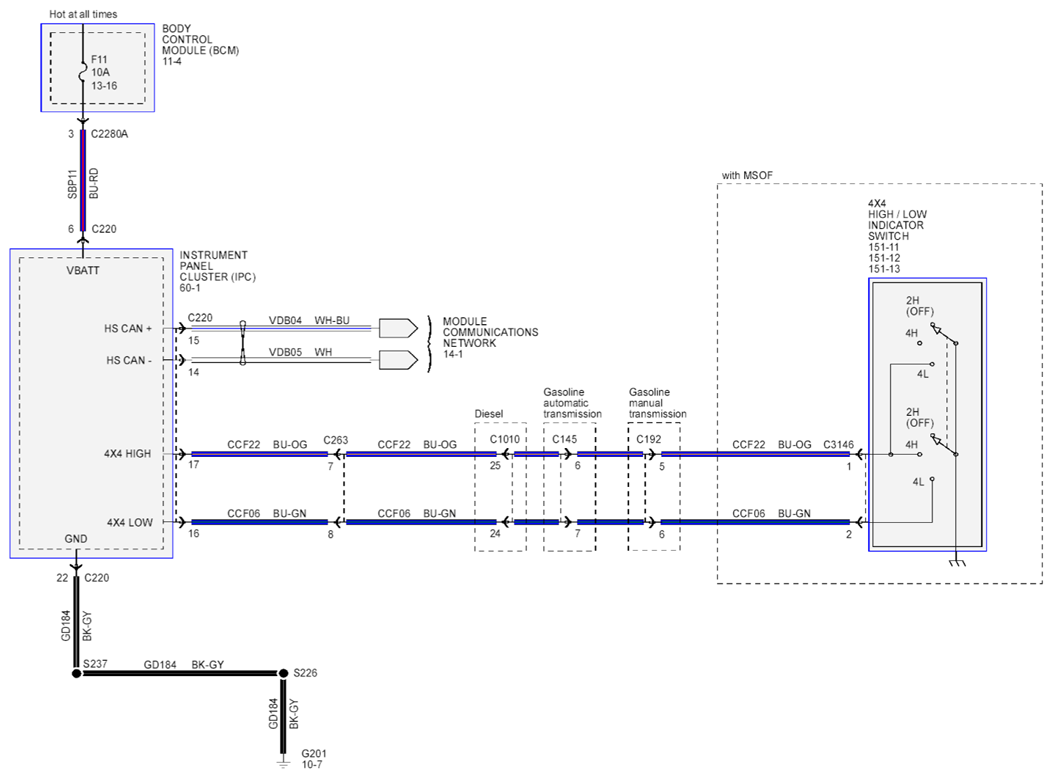

Fig 4: Four Wheel Drive Systems Circuit Diagram (View 4 Of 4)
