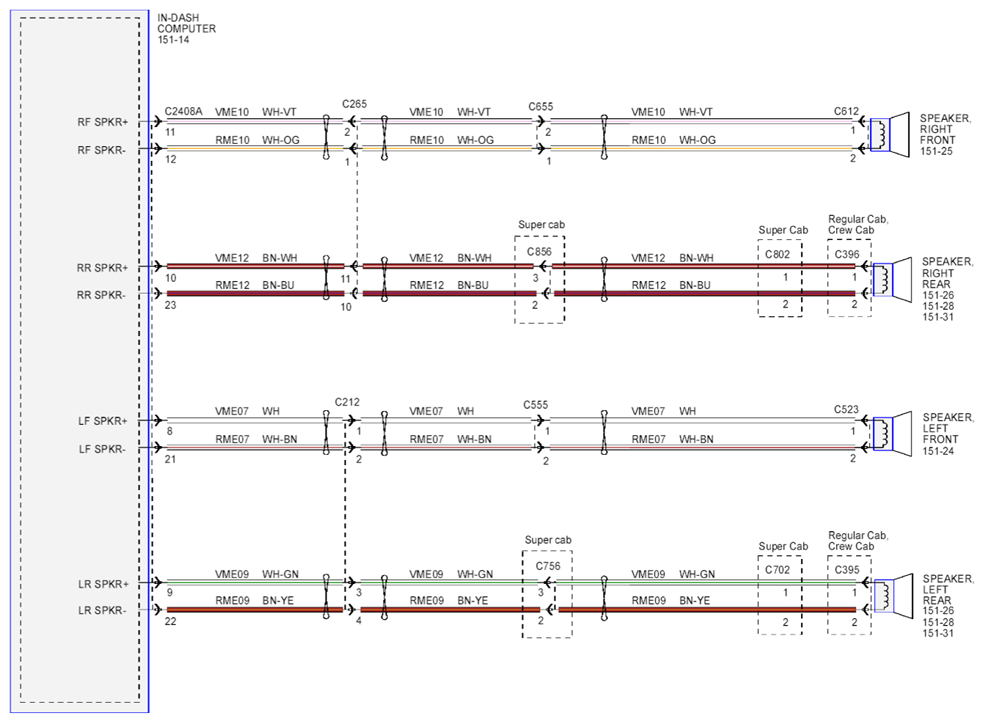

Fig 1: Ford Work Solutions (In-Dash Computer) Circuit Diagram (View 3 Of 5)
Courtesy of FORD MOTOR CO.

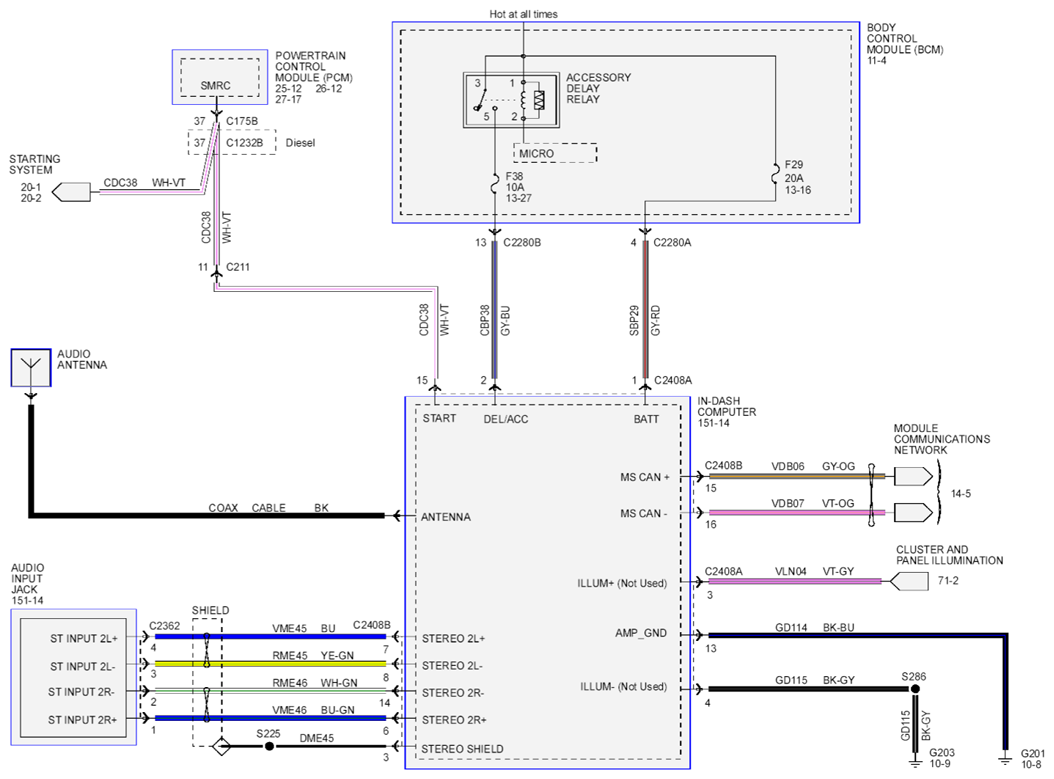

Fig 2: Ford Work Solutions (In-Dash Computer) Circuit Diagram (View 4 Of 5)
