PTO Interface

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

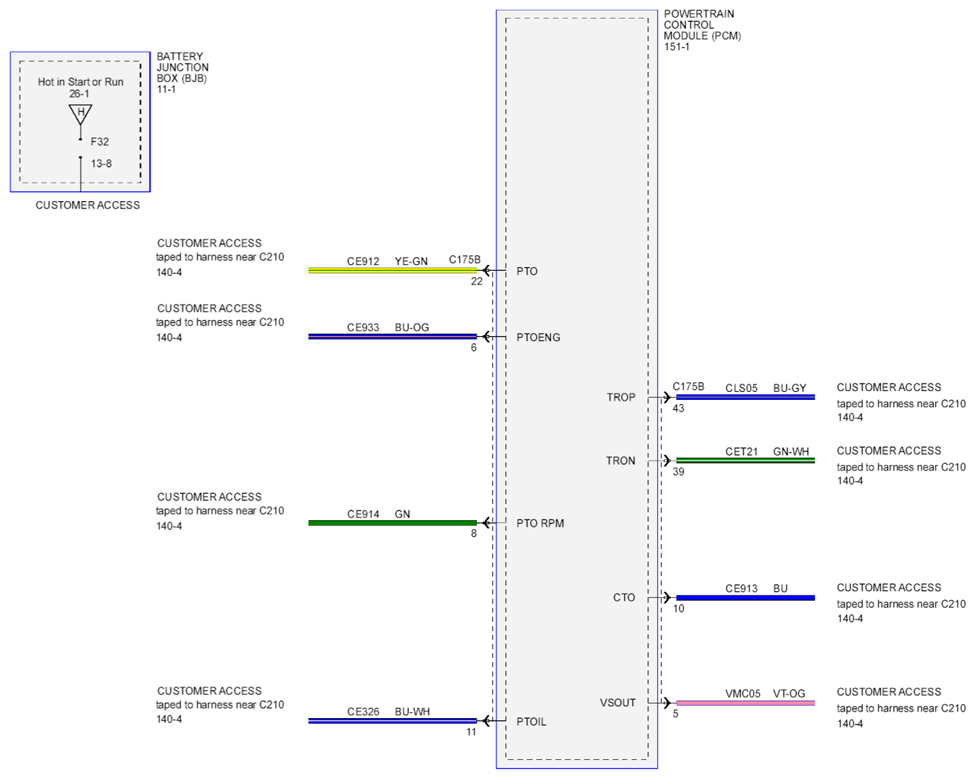

Fig 1: Electronic Engine Controls-6.2L (PTO Interface) Circuit Diagram (View 11 Of 14)

Courtesy of FORD MOTOR CO.

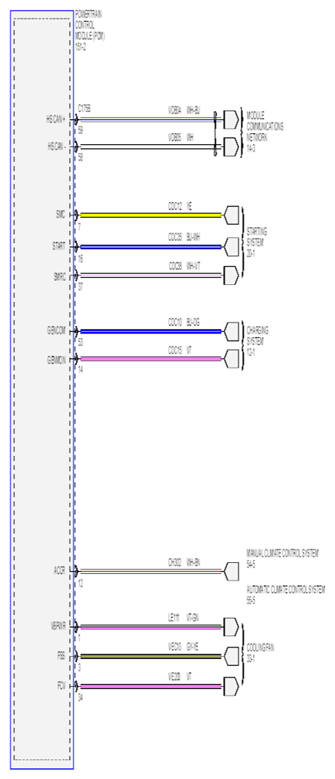

Fig 2: Electronic Engine Controls-6.2L Circuit Diagram (View 12 Of 14)

Courtesy of FORD MOTOR CO.
