Electronic Engine Controls-6.2L: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

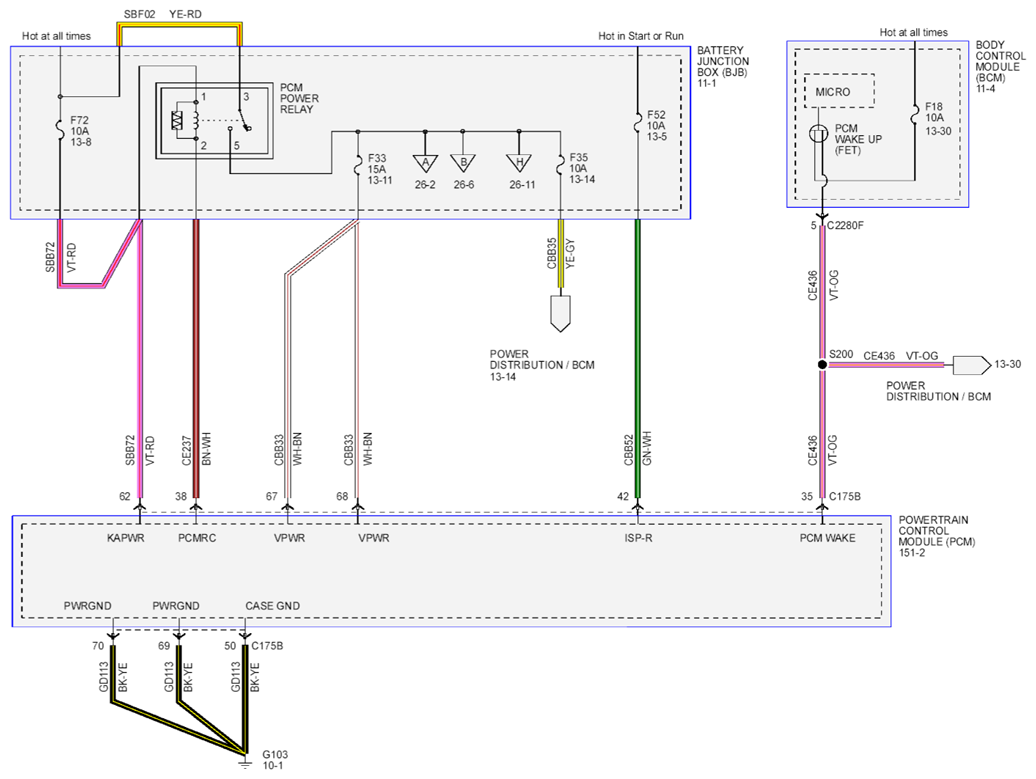

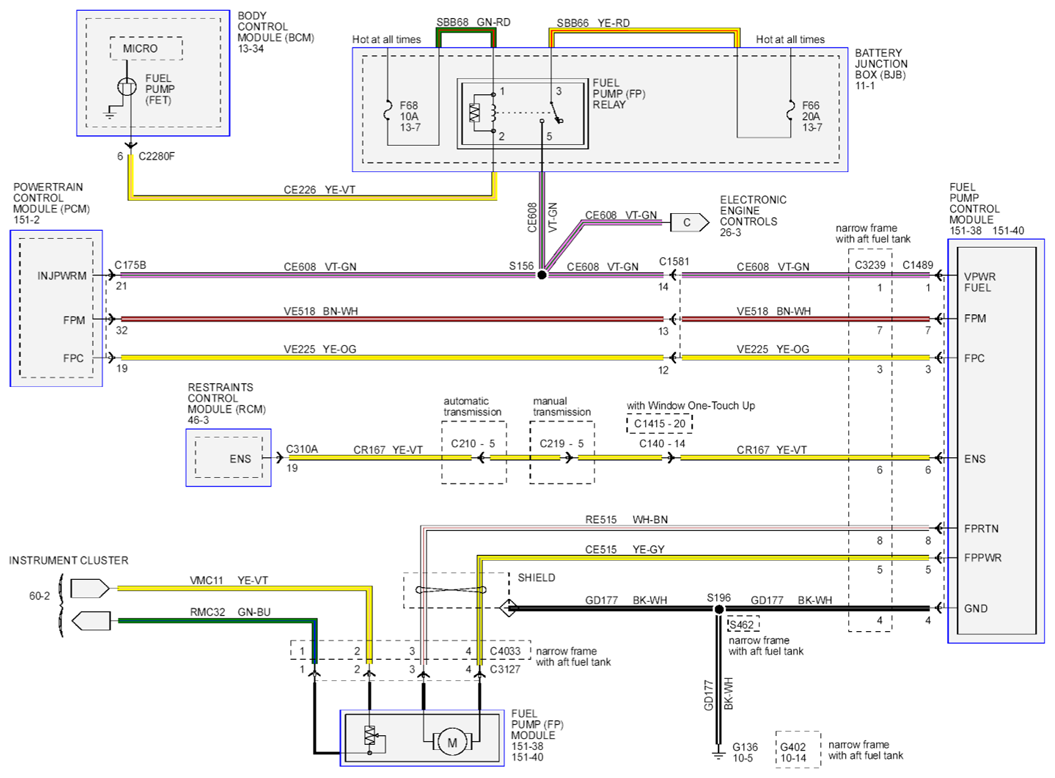

Fig 1: Electronic Engine Controls-6.2L Circuit Diagram (View 1 Of 14)

Courtesy of FORD MOTOR CO.

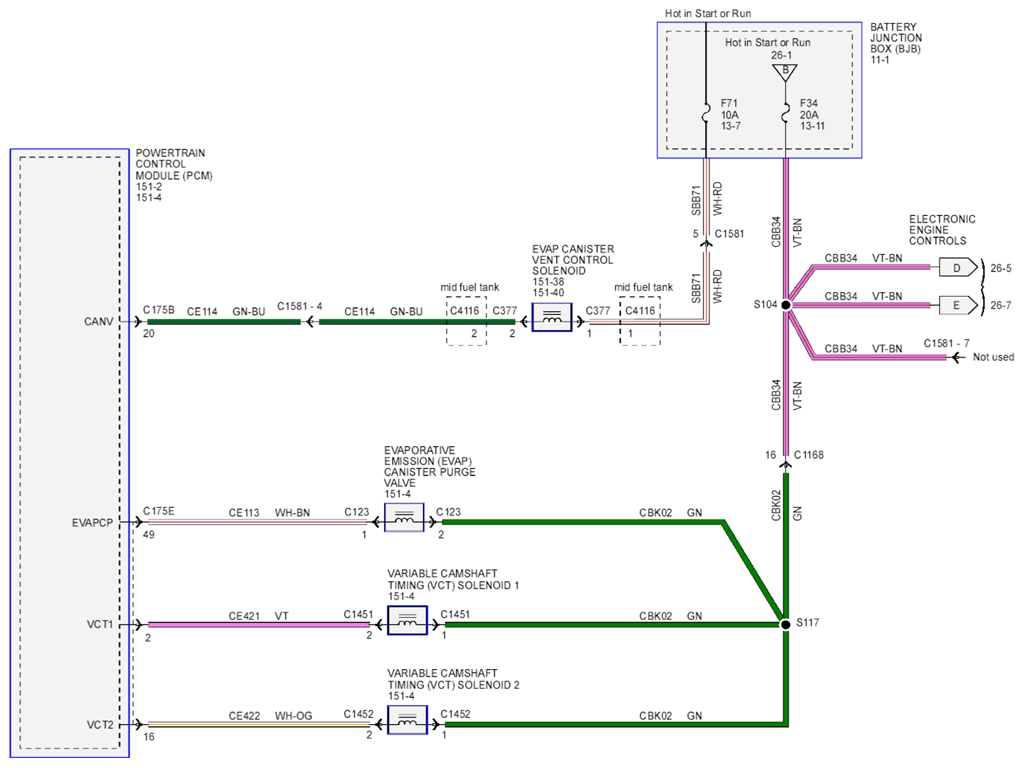

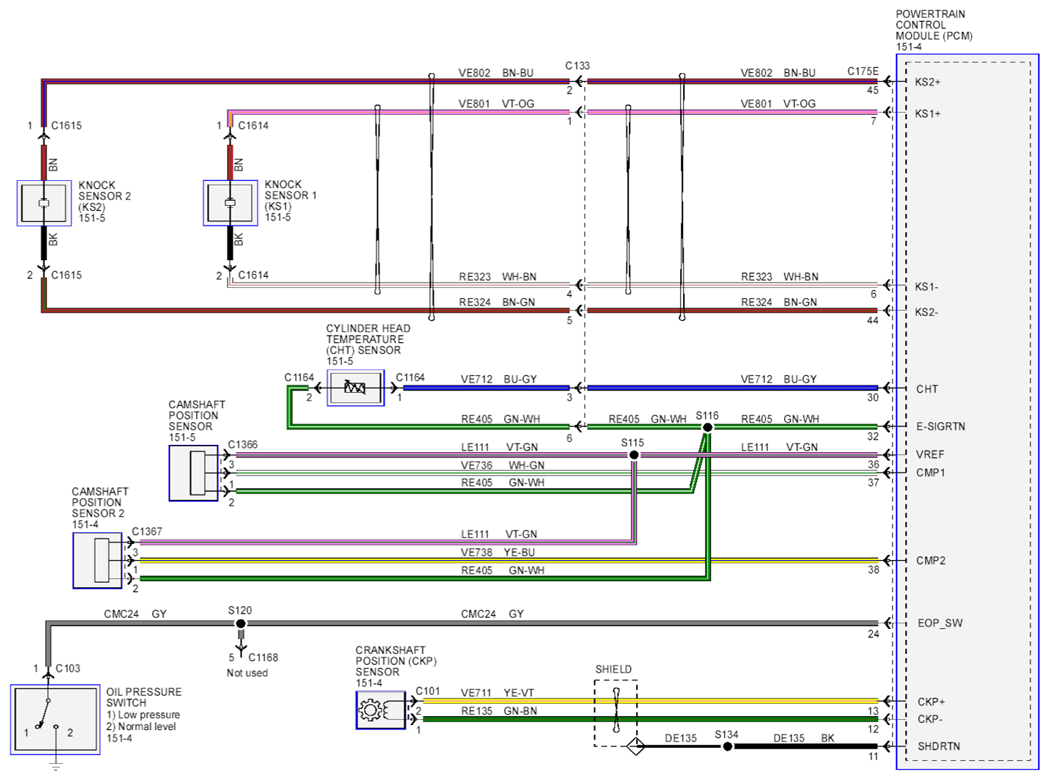

Fig 2: Electronic Engine Controls-6.2L Circuit Diagram (View 2 Of 14)

Courtesy of FORD MOTOR CO.

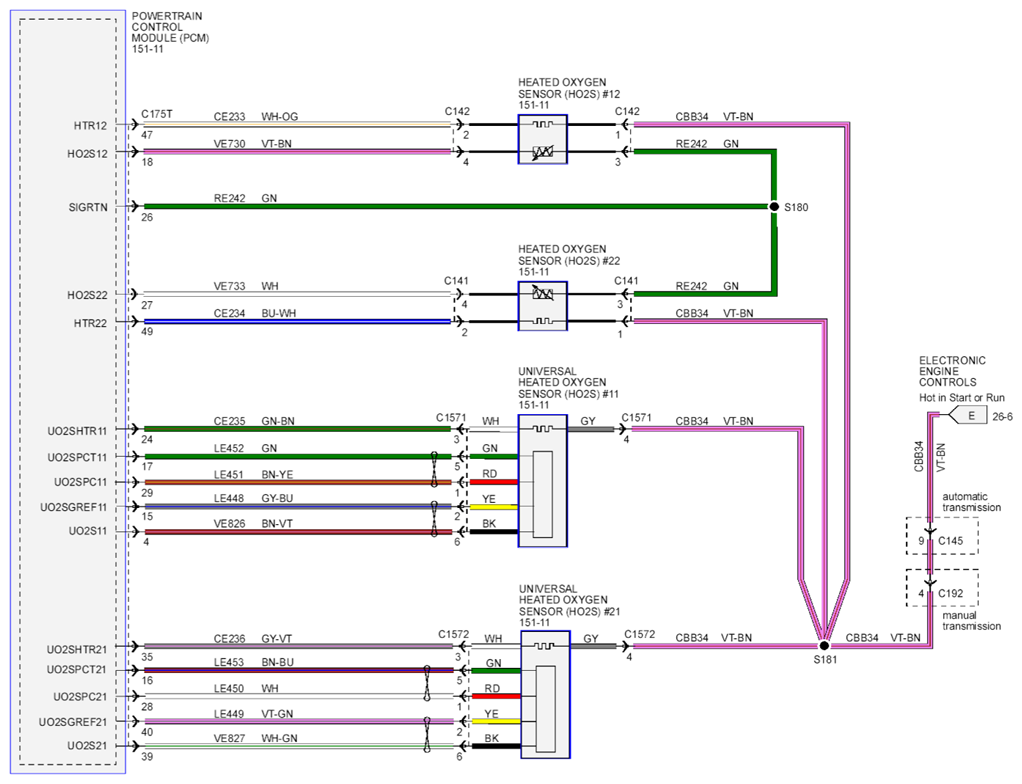

Fig 3: Electronic Engine Controls-6.2L Circuit Diagram (View 3 Of 14)

Courtesy of FORD MOTOR CO.

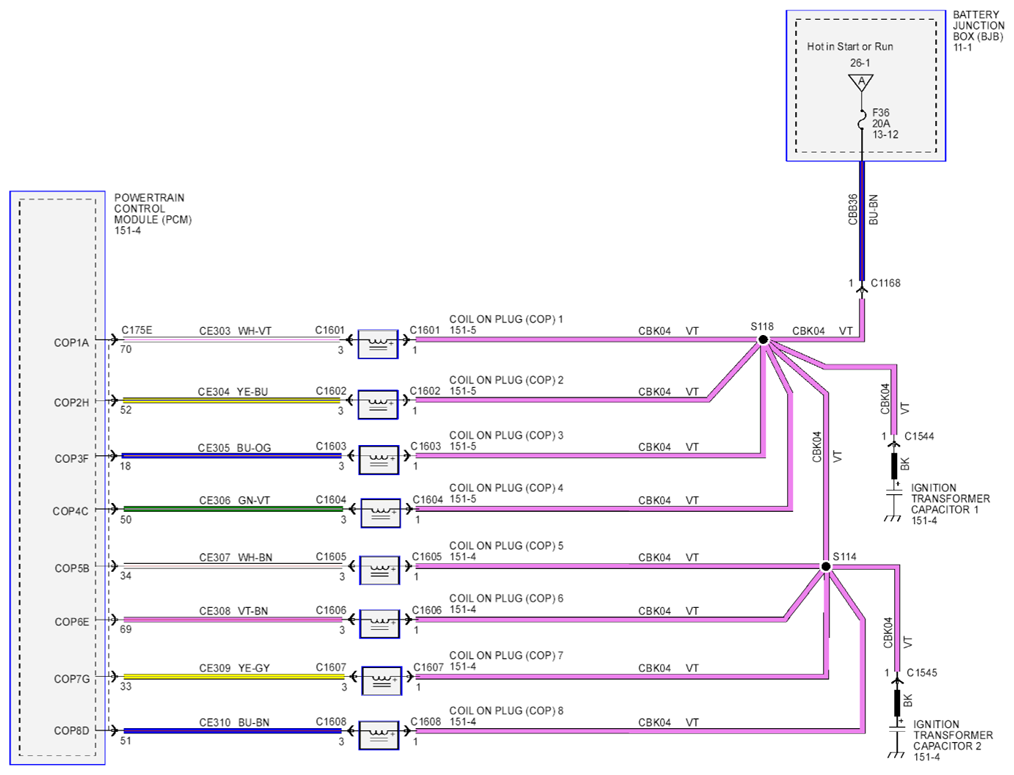

Fig 4: Electronic Engine Controls-6.2L Circuit Diagram (View 4 Of 14)

Courtesy of FORD MOTOR CO.

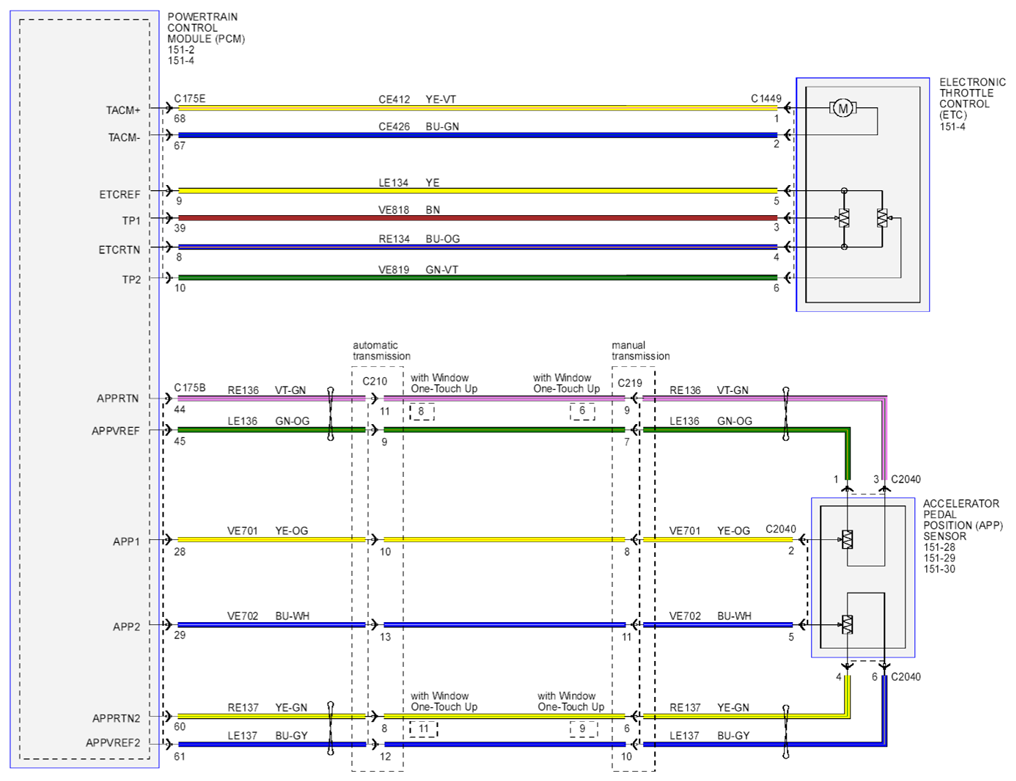

Fig 5: Electronic Engine Controls-6.2L Circuit Diagram (View 5 Of 14)

Courtesy of FORD MOTOR CO.

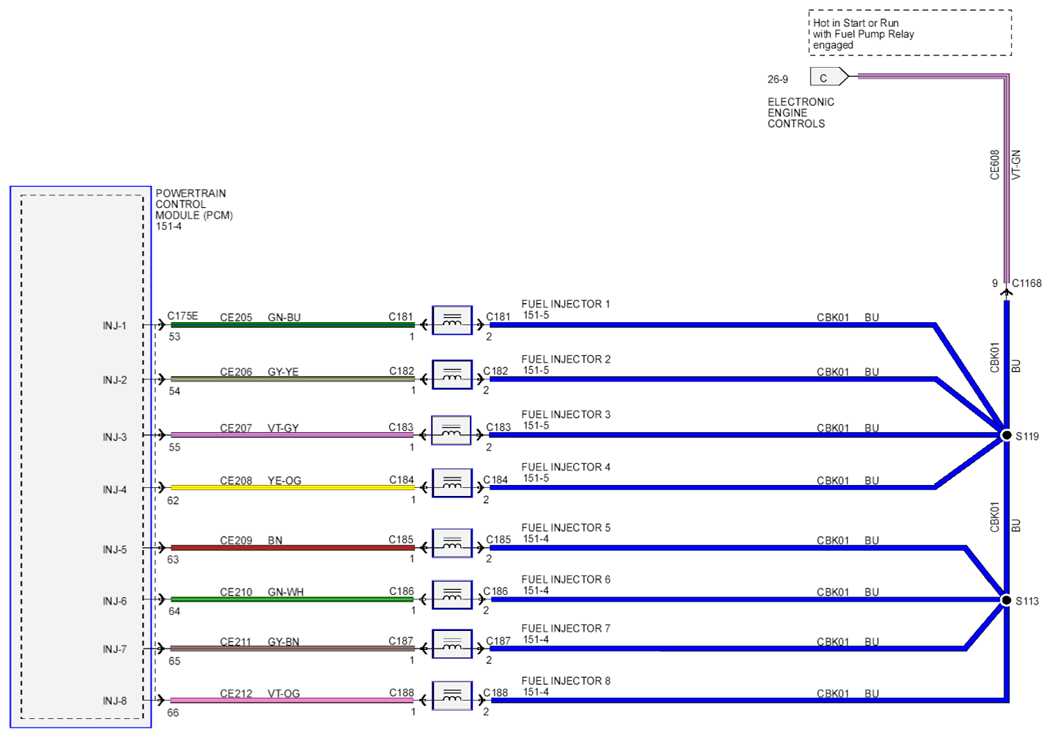

Fig 6: Electronic Engine Controls-6.2L Circuit Diagram (View 6 Of 14)

Courtesy of FORD MOTOR CO.

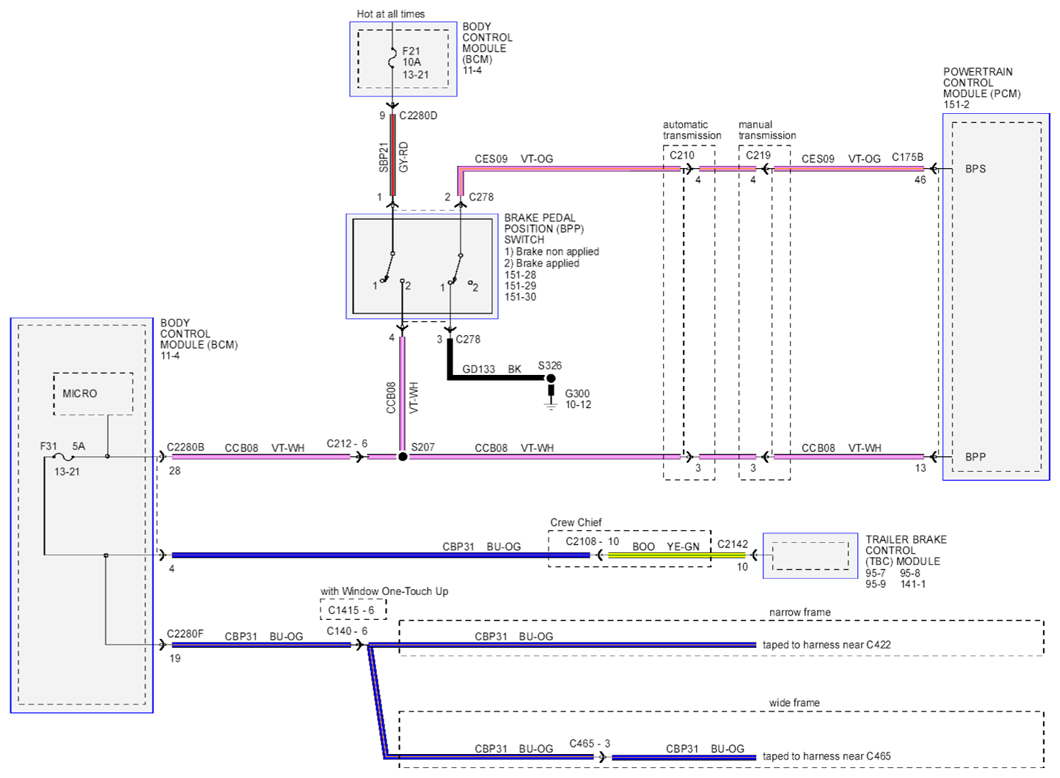

Fig 7: Electronic Engine Controls-6.2L Circuit Diagram (View 7 Of 14)

Courtesy of FORD MOTOR CO.

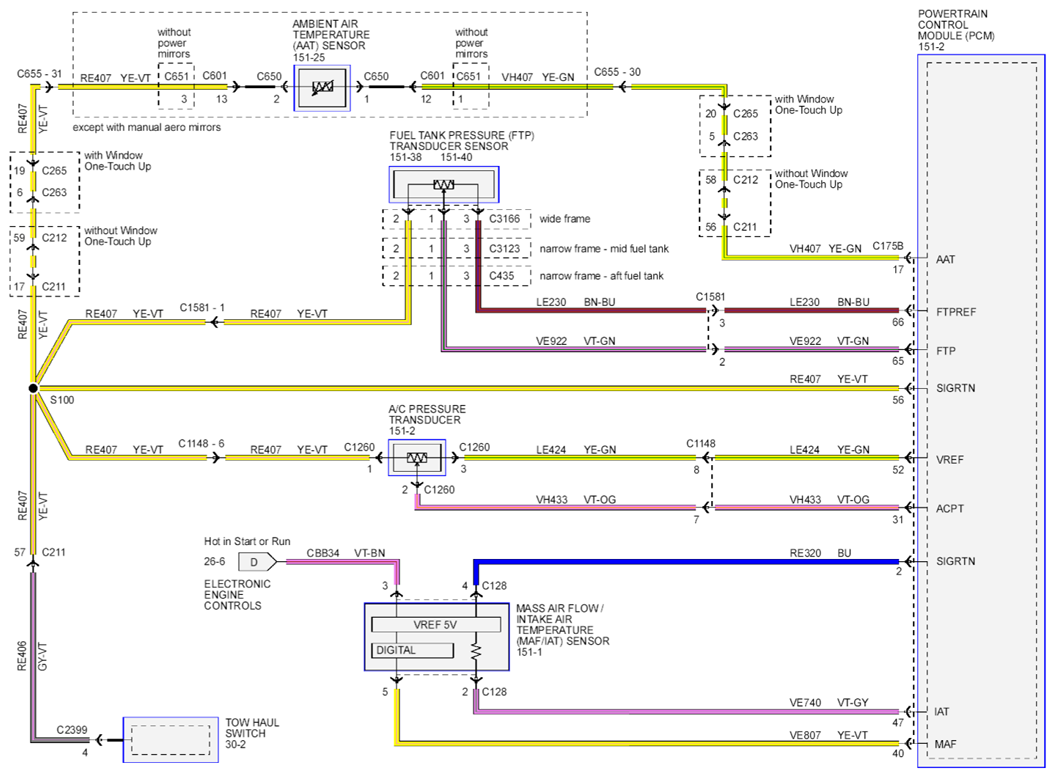

Fig 8: Electronic Engine Controls-6.2L Circuit Diagram (View 8 Of 14)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Controls-6.2L Circuit Diagram (View 9 Of 14)

Courtesy of FORD MOTOR CO.

Fig 10: Electronic Engine Controls-6.2L Circuit Diagram (View 10 Of 14)

Courtesy of FORD MOTOR CO.
