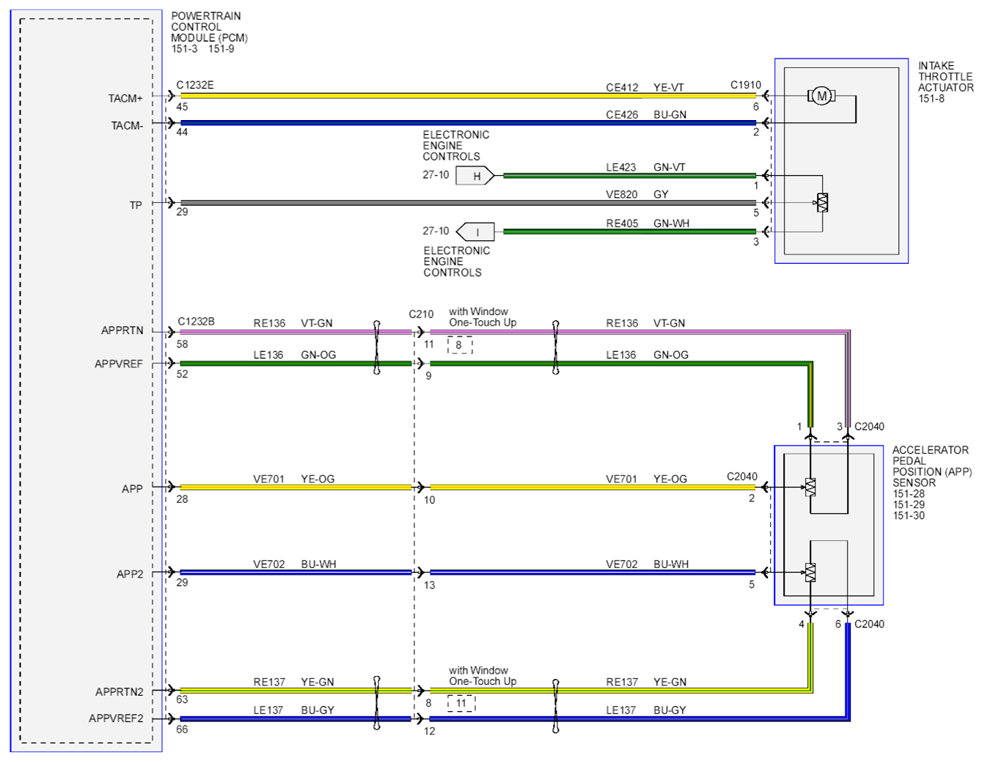

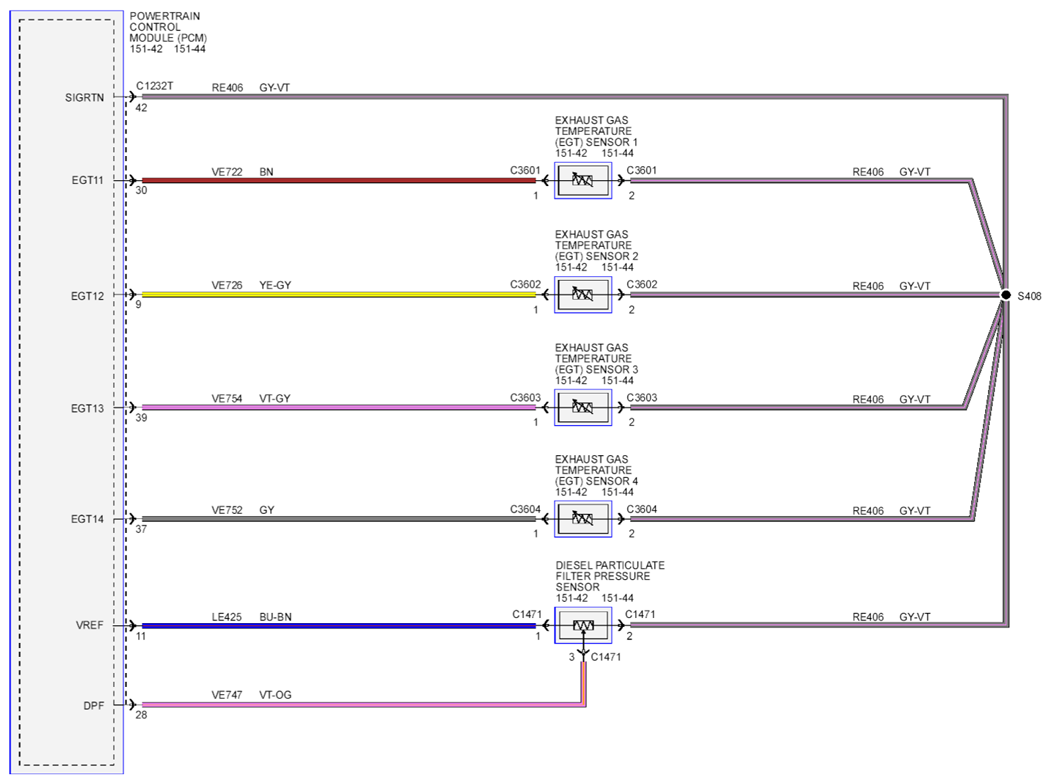

Fig 1: Electronic Engine Controls - 6.7L Diesel Circuit Diagram (View 5 Of 17)

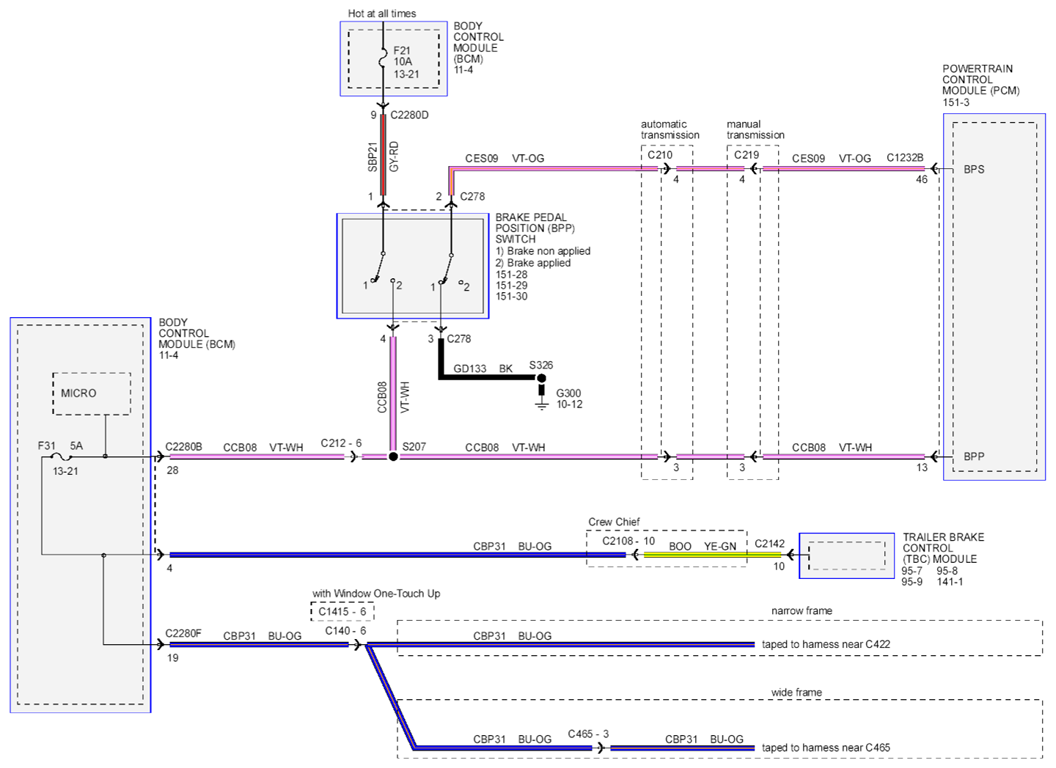

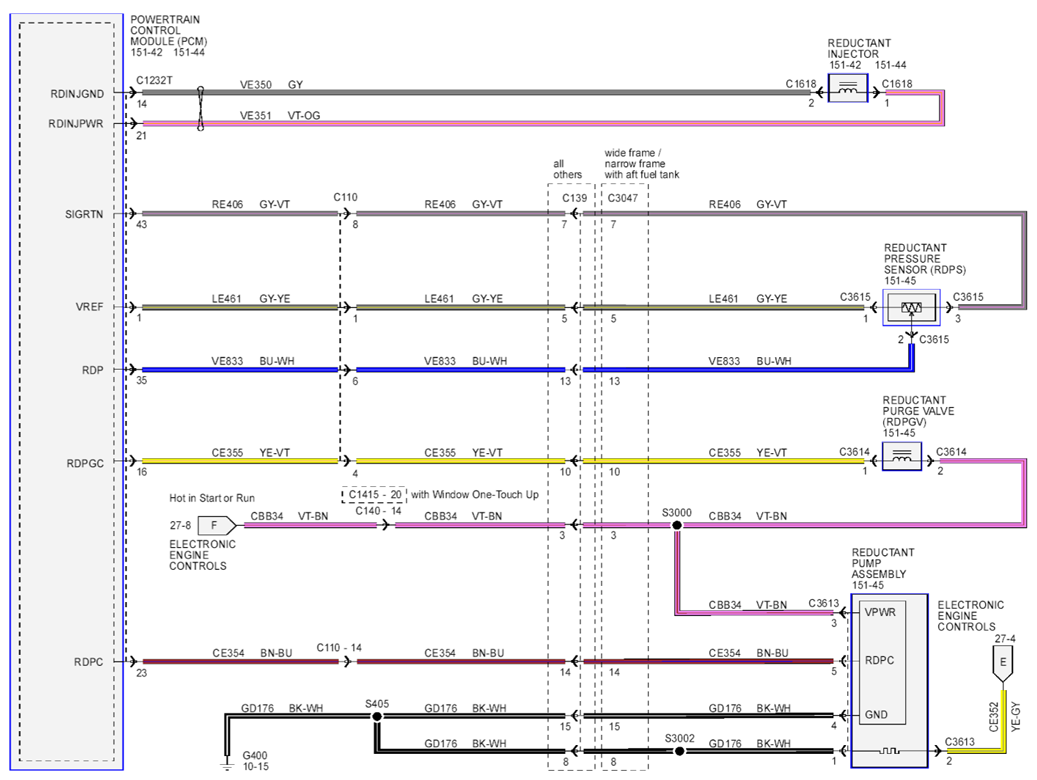

Fig 2: Electronic Engine Controls - 6.7L Diesel Circuit Diagram (View 6 Of 17)

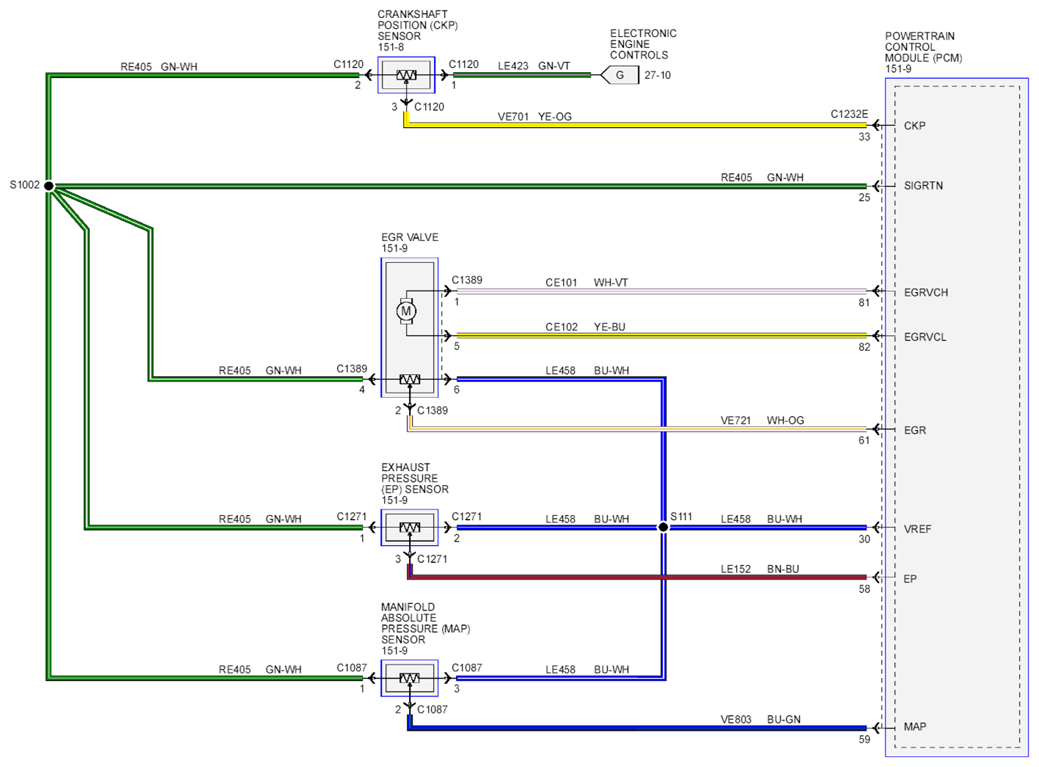

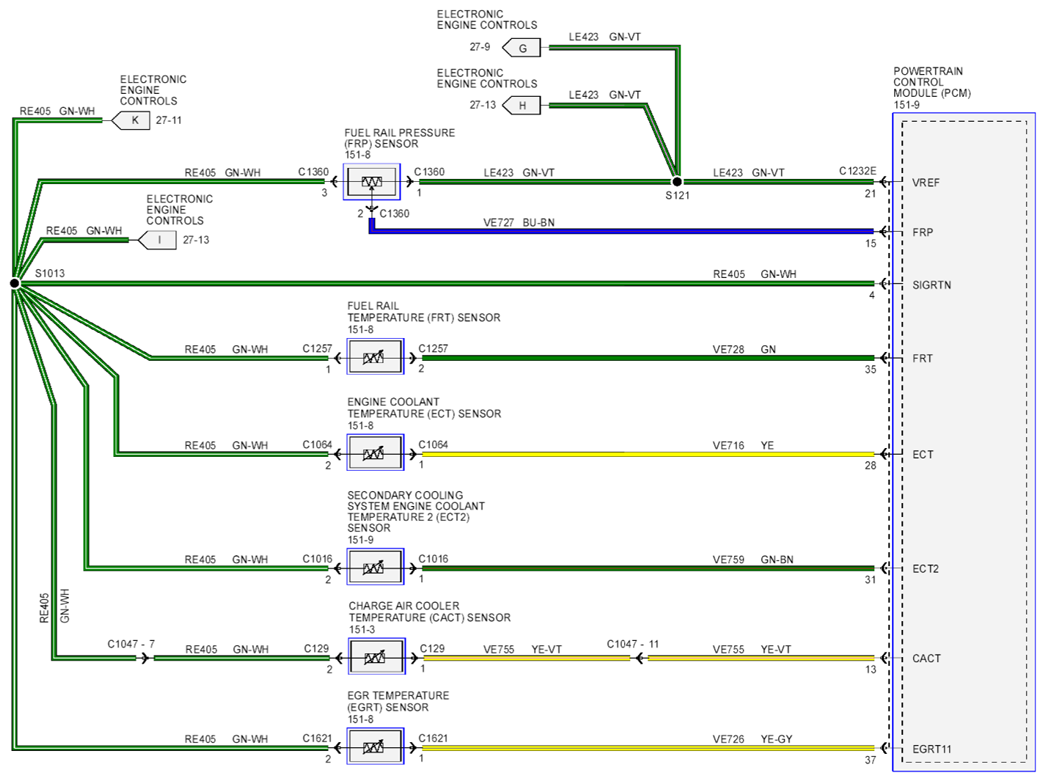

Fig 3: Electronic Engine Controls - 6.7L Diesel Circuit Diagram (View 7 Of 17)

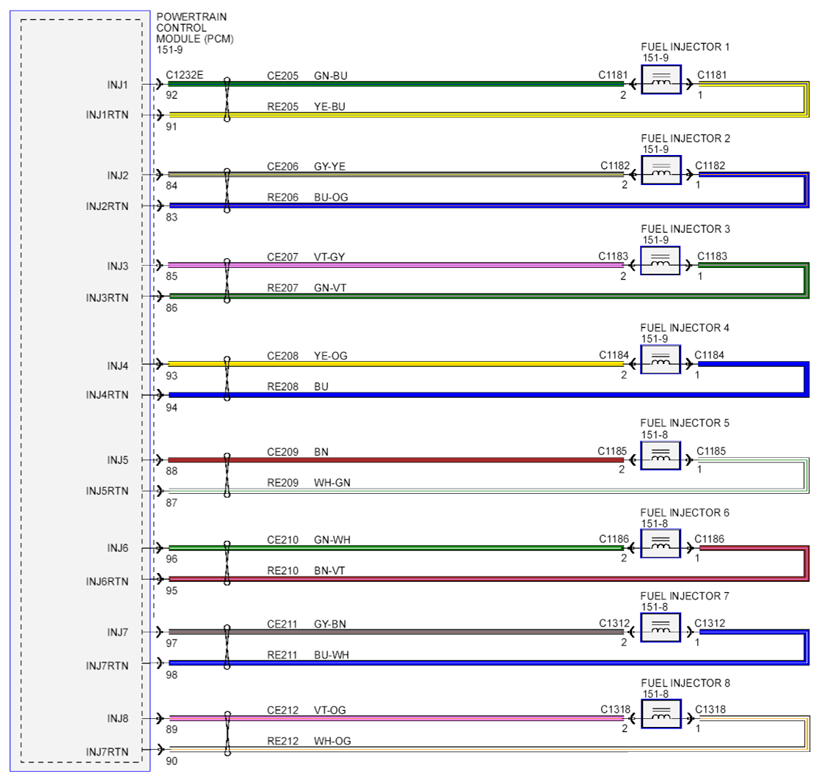

Fig 4: Electronic Engine Controls - 6.7L Diesel Circuit Diagram (View 8 Of 17)

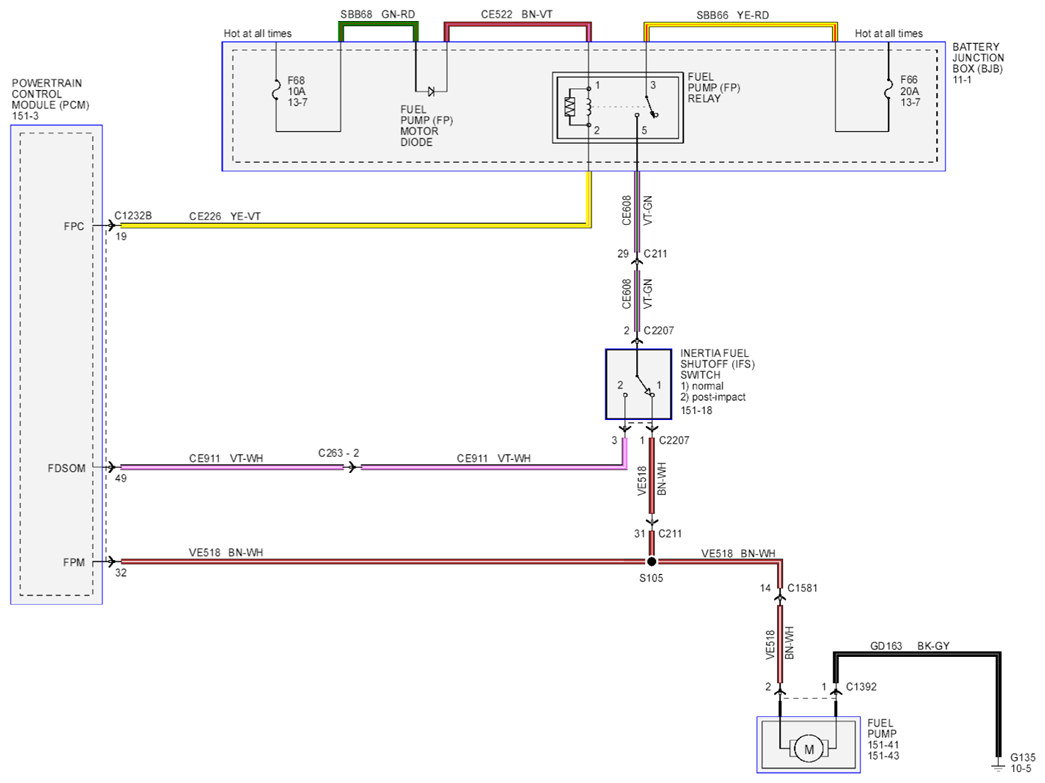

Fig 5: Electronic Engine Controls - 6.7L Diesel Circuit Diagram (View 9 Of 17)

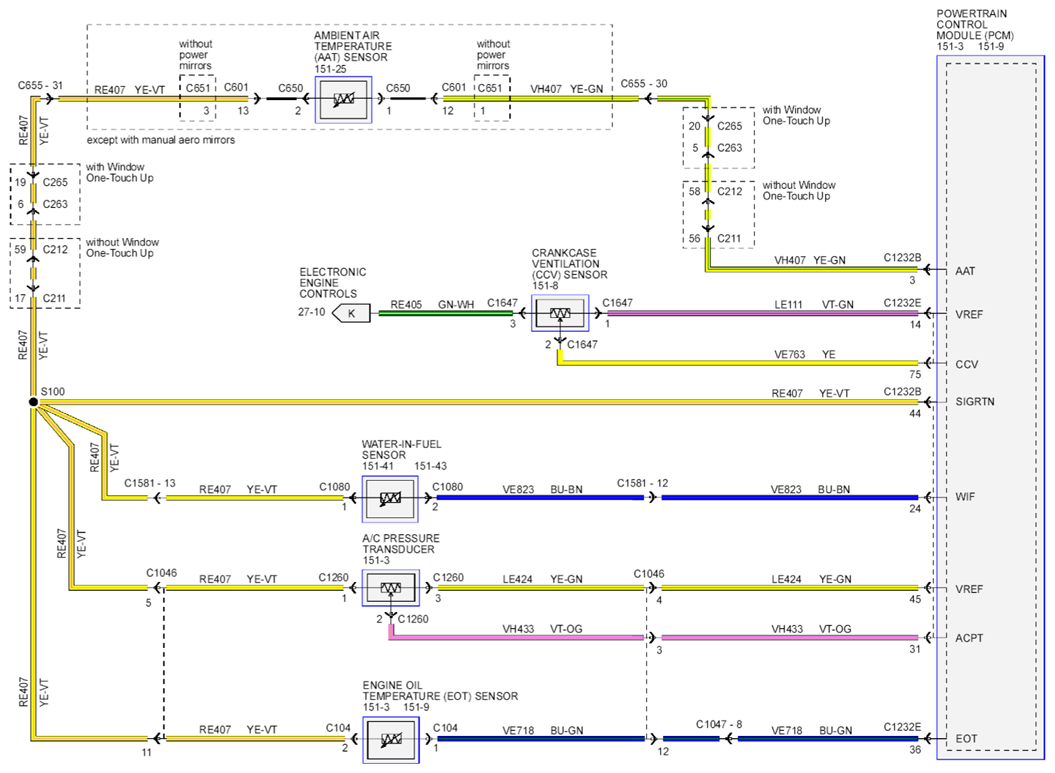

Fig 6: Electronic Engine Controls - 6.7L Diesel Circuit Diagram (View 10 Of 17)

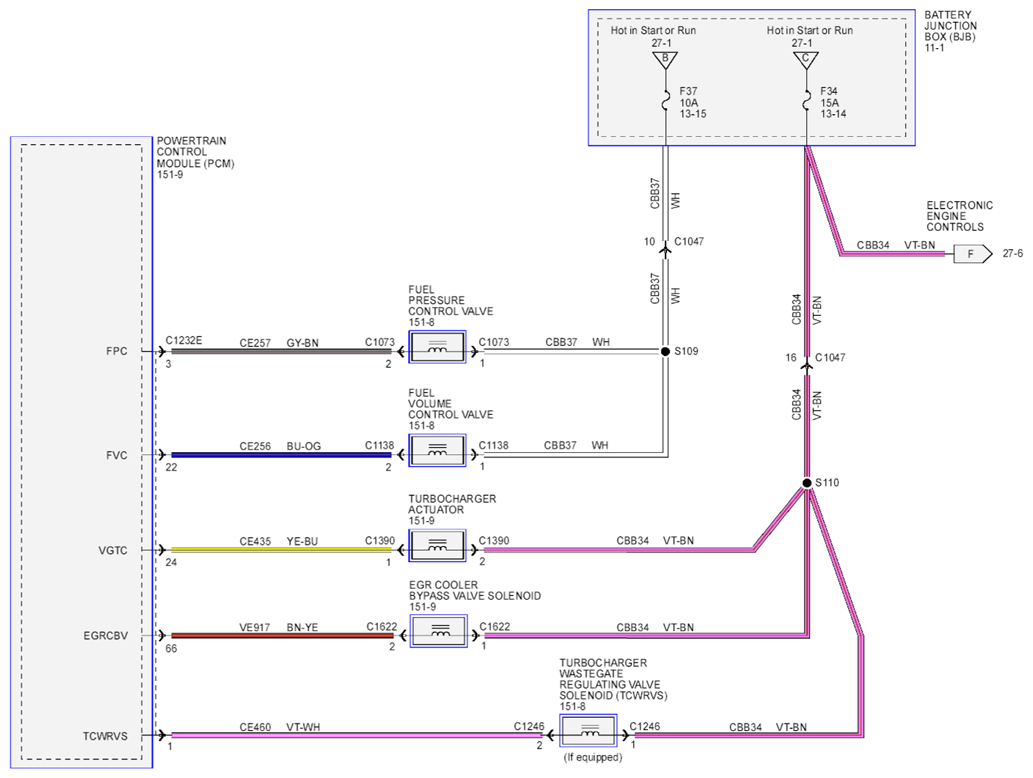

Fig 7: Electronic Engine Controls - 6.7L Diesel Circuit Diagram (View 11 Of 17)

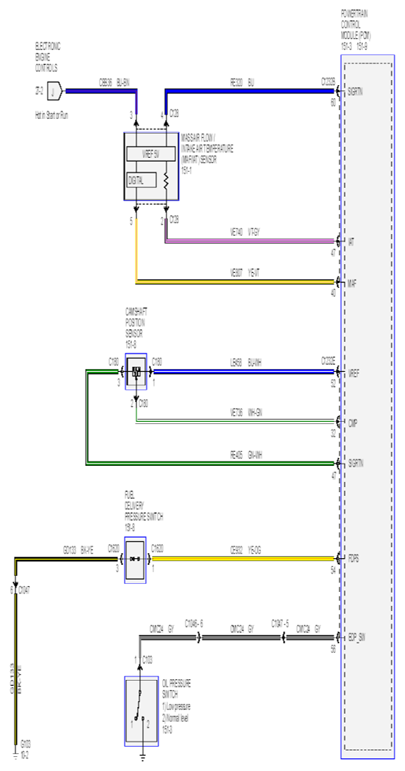

Fig 8: Electronic Engine Controls - 6.7L Diesel Circuit Diagram (View 12 Of 17)

Fig 9: Electronic Engine Controls - 6.7L Diesel Circuit Diagram (View 13 Of 17)

Fig 10: Electronic Engine Controls - 6.7L Diesel Circuit Diagram (View 14 Of 17)

Fig 11: Electronic Engine Controls - 6.7L Diesel Circuit Diagram (View 15 Of 17)
