With Redundant Audio Controls With Sync - With Navigation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

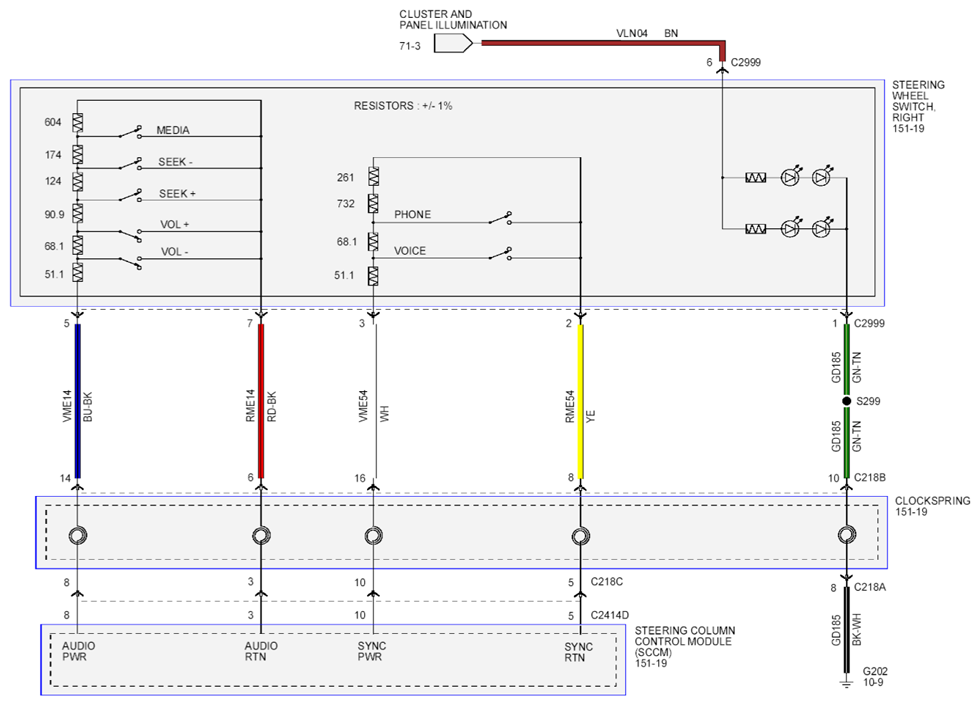

Fig 1: Audio System And Navigation (With Redundant Audio Controls With SYNC - With Navigation) Circuit Diagram (View 15 Of 15)

Courtesy of FORD MOTOR CO.
