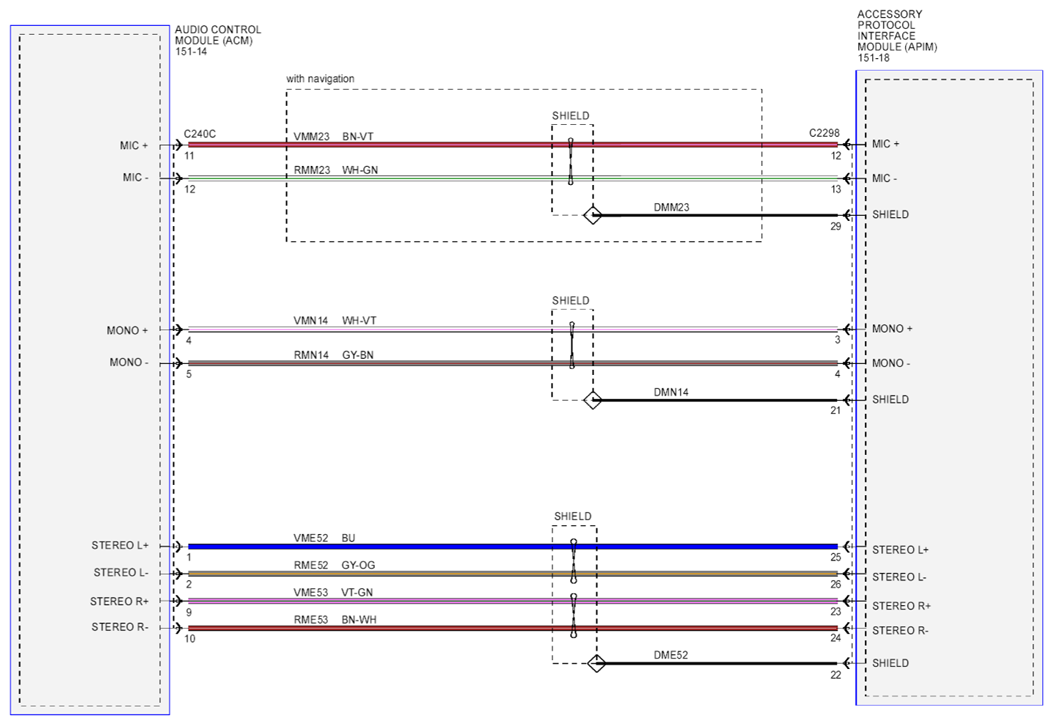

Fig 1: Audio System And Navigation (SYNC) Circuit Diagram (View 9 Of 15)
Courtesy of FORD MOTOR CO.
Fig 2: Audio System And Navigation (SYNC) Circuit Diagram (View 10 Of 15)
Courtesy of FORD MOTOR CO.

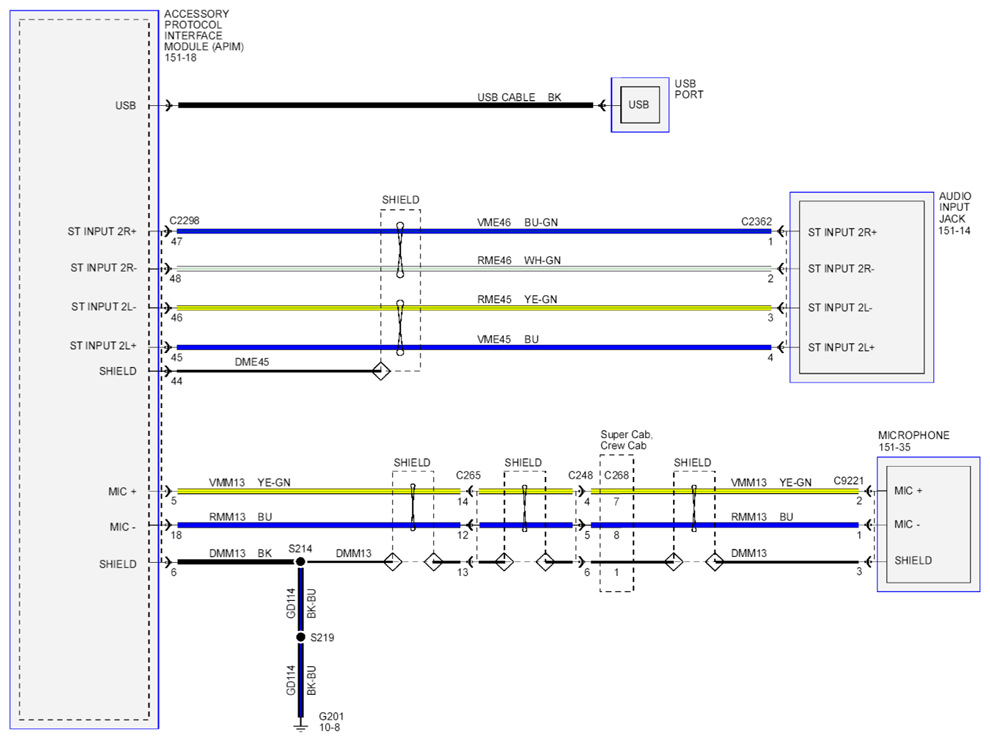

Fig 3: Audio System And Navigation (SYNC) Circuit Diagram (View 11 Of 15)
Courtesy of FORD MOTOR CO.

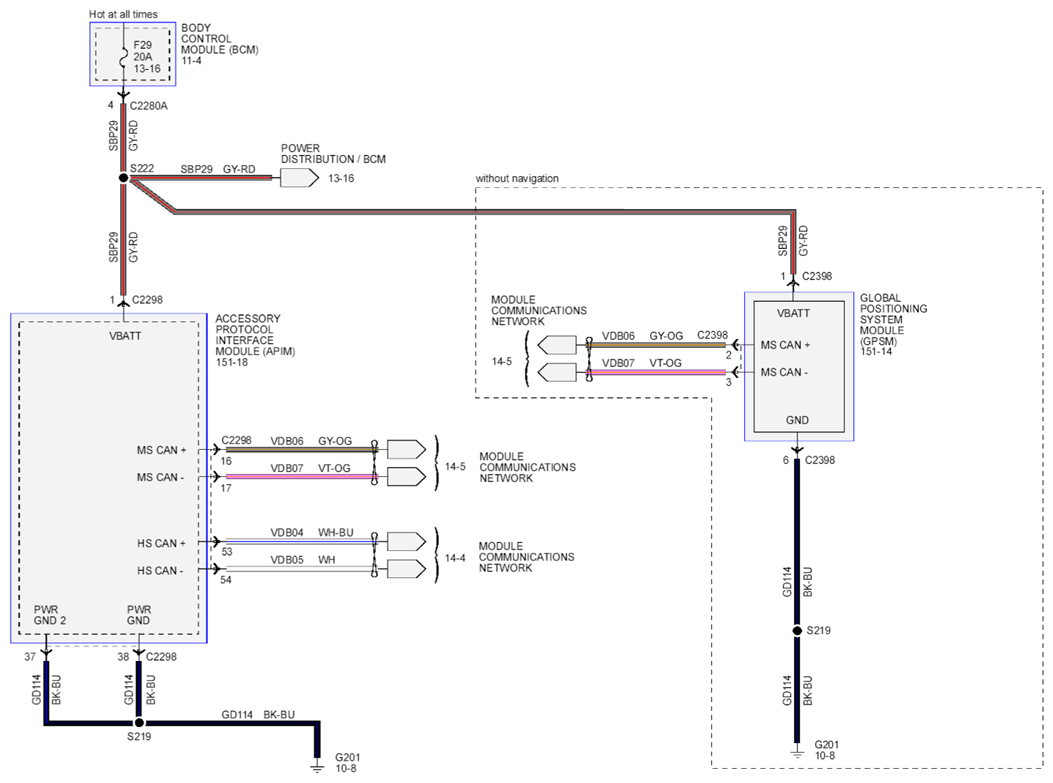

Fig 4: Audio System And Navigation (SYNC) Circuit Diagram (View 12 Of 15)
