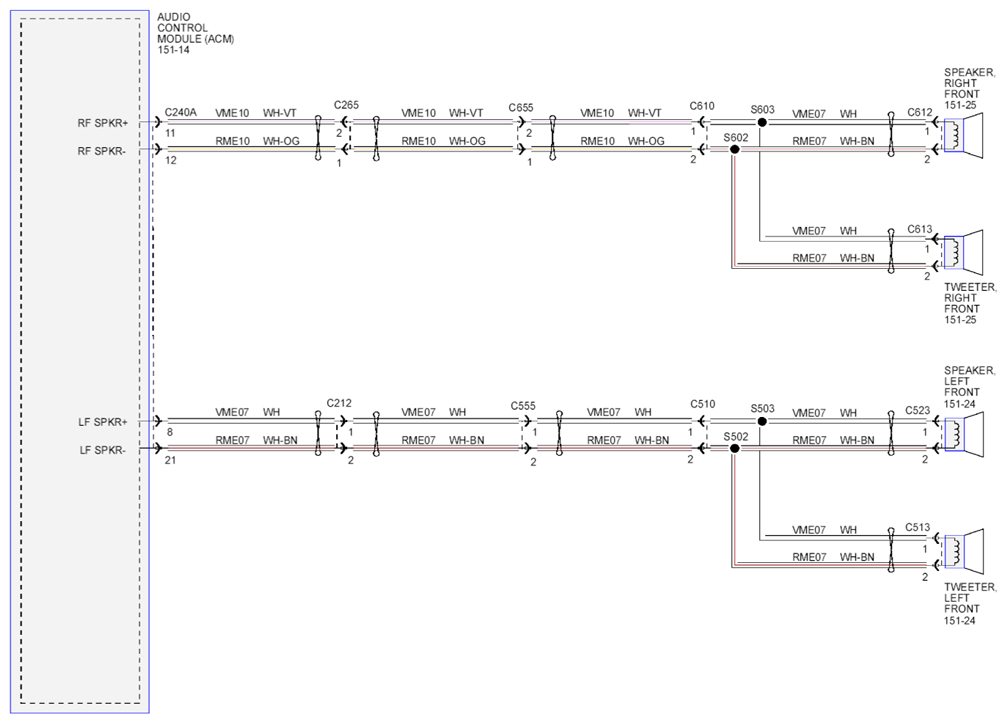

Fig 1: Audio System And Navigation (Premium Audio) Circuit Diagram (View 3 Of 15)
Courtesy of FORD MOTOR CO.

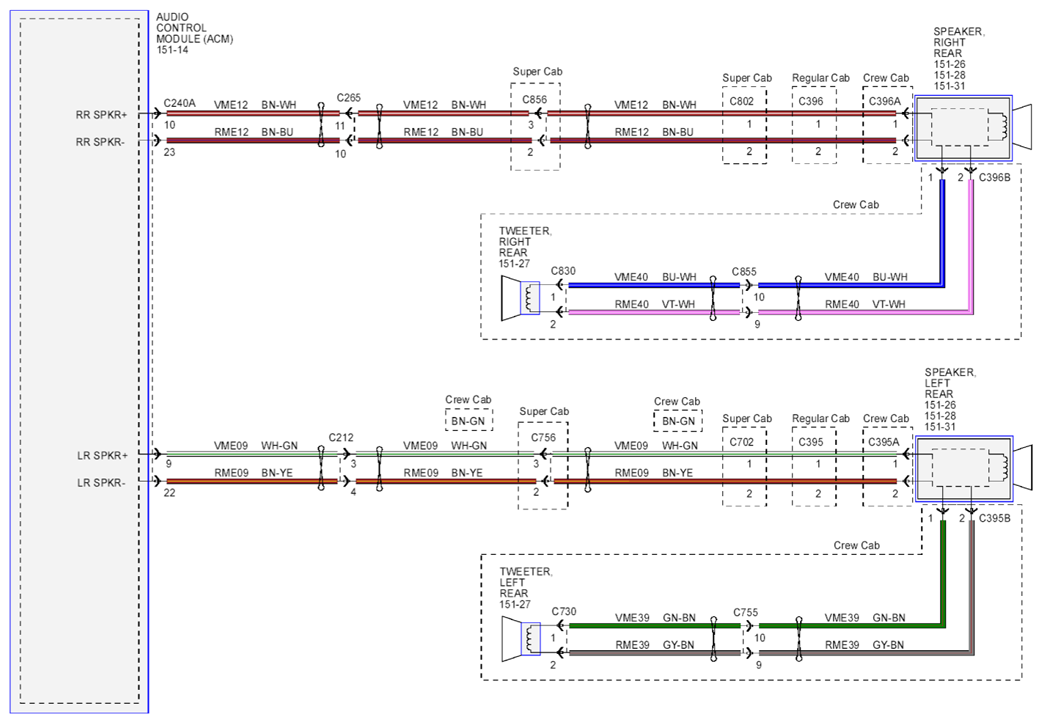

Fig 2: Audio System And Navigation Circuit Diagram (View 4 Of 15)
