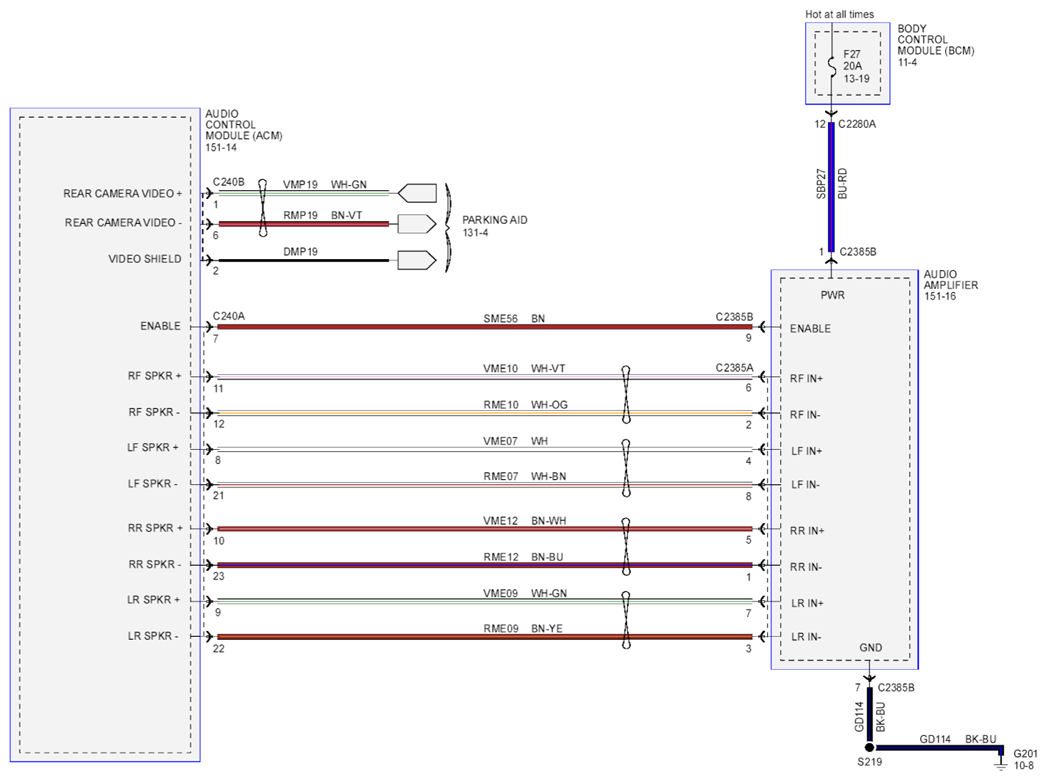

Fig 1: Audio System And Navigation (Navigation Audio) Circuit Diagram (View 6 Of 15)
Courtesy of FORD MOTOR CO.

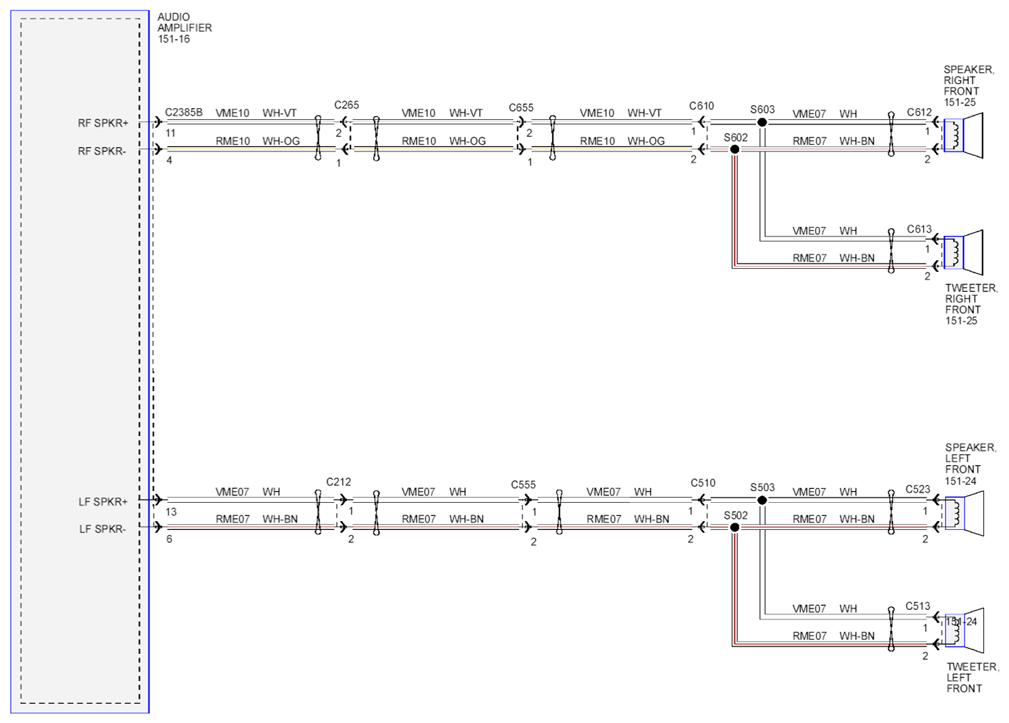

Fig 2: Audio System And Navigation (Navigation Audio) Circuit Diagram (View 7 Of 15)
Courtesy of FORD MOTOR CO.

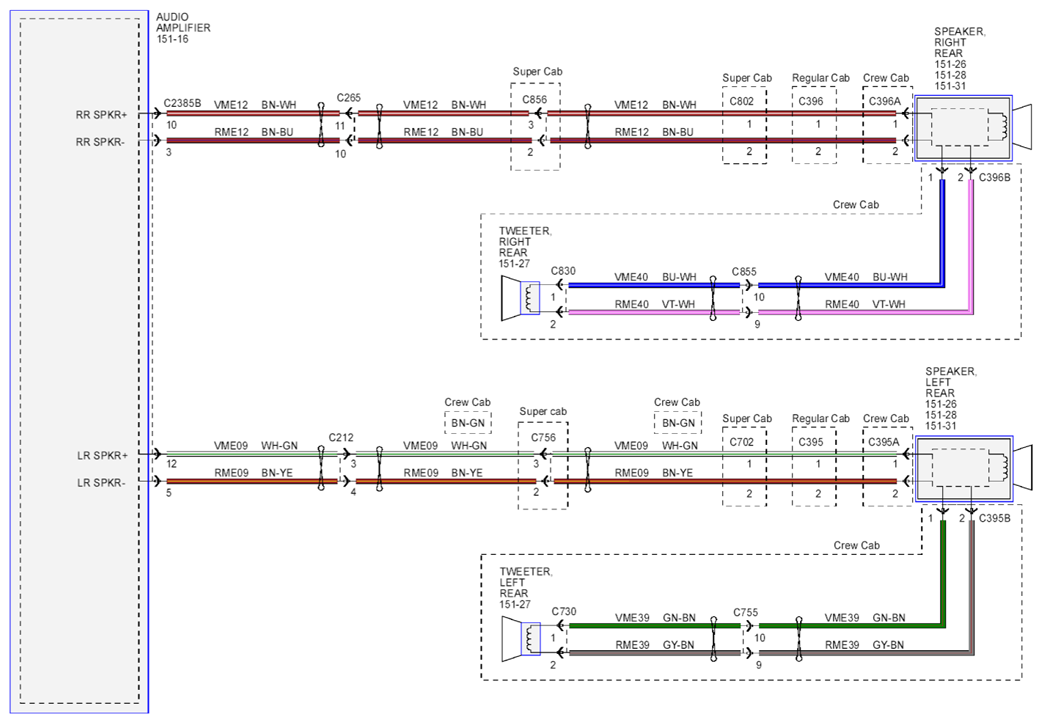

Fig 3: Audio System And Navigation (Navigation Audio) Circuit Diagram (View 8 Of 15)
