Trough Assembly: Removal

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass .

  1. 2.

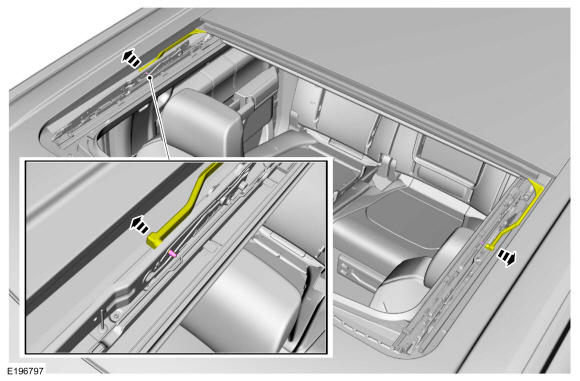

    Detach the trough assembly arms on both sides.
GFD43415Courtesy of FORD MOTOR COMPANY

  1. 3.

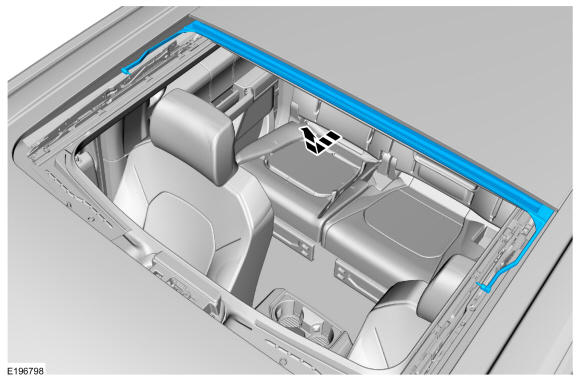

    Pull the trough assembly towards the front of the vehicle and remove the trough assembly.
GFD43416Courtesy of FORD MOTOR COMPANY
