Window Control Switch: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH, regular cab shown in illustration, all others similar.

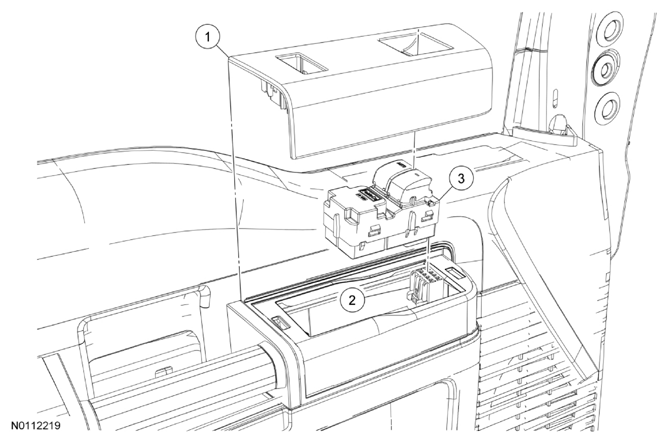

Fig 1: Identifying Window Control Switch

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14524	Window control switch bezel
2	14631 LH/ 14630 RH	Electrical connector (3 required)
3	14529	Window control switch
