Crew Cab
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

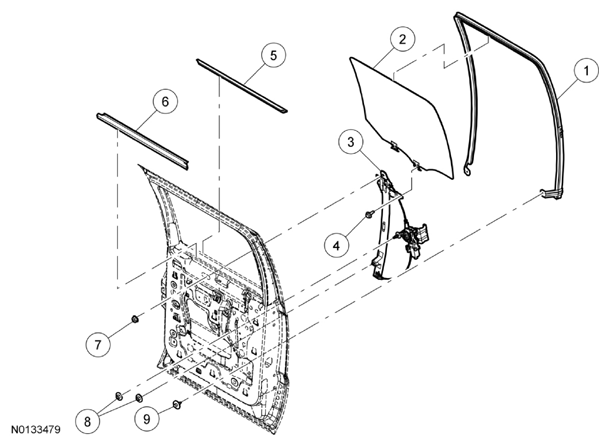

LH side shown in illustration, RH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 25767 LH/ 25766 RH | Rear door window glass run |
| 2 | 25713 LH/ 25712 RH | Rear door window glass |
| 3 | 27001 LH/ 27000 RH | Rear door window regulator and motor assembly |
| 4 | W714438 | Window glass clamp screw (2 required) |
| 5 | 25596 | Exterior belt line weatherstrip |
| 6 | 25860 | Interior belt line weatherstrip |
| 7 | - | Rear door window regulator and motor assembly nut (part of 27001 LH/ 27000 RH) |
| 8 | W711059 | Rear door window regulator and motor assembly nut (2 required) |
| 9 | W715067 | Rear door window glass run bolt (2 required) |
