Nitrogen Oxides (NOx) Sensor: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Temperature Nickel Anti-Seize Lubricant XL-2 |
- |
| Penetrating and Lock Lubricant (US); Penetrating Fluid (Canada) XL-1 (US); CXC-51-A (Canada) |
- |

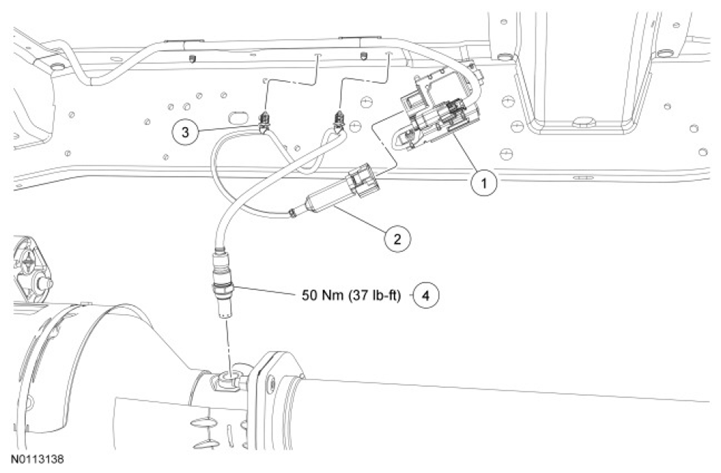

| Item | Part Number | Description |
|---|---|---|
| 1 | 5K202 | Nitrogen Oxides (NOx) sensor module |
| 2 | - | Nitrogen Oxides (NOx) sensor electrical connector (part of 9D378) |
| 3 | - | Wiring harness retainer (part of 9D378) (2 required) |
| 4 | 9D378 | NOx sensor |
