Engine Oil Temperature (EOT) Sensor and Engine Oil Pressure (EOP) switch
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Apply thread sealant to the sensors prior to installation.

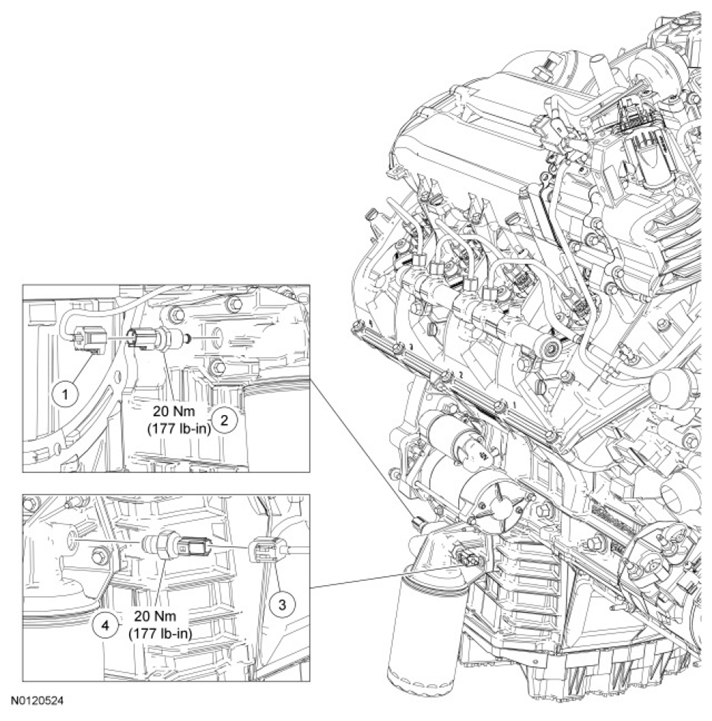

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Engine Oil Temperature (EOT) sensor electrical connector (part of 12B637) |
| 2 | 12A648 | EOT sensor |
| 3 | - | Engine Oil Pressure (EOP) switch electrical connector (part of 12B637) |
| 4 | 9278 | EOP switch |
