Knock Sensor (KS)
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The intake manifold must be removed to perform this procedure. For additional information, refer to
ENGINE - 6.8L (3V)
.

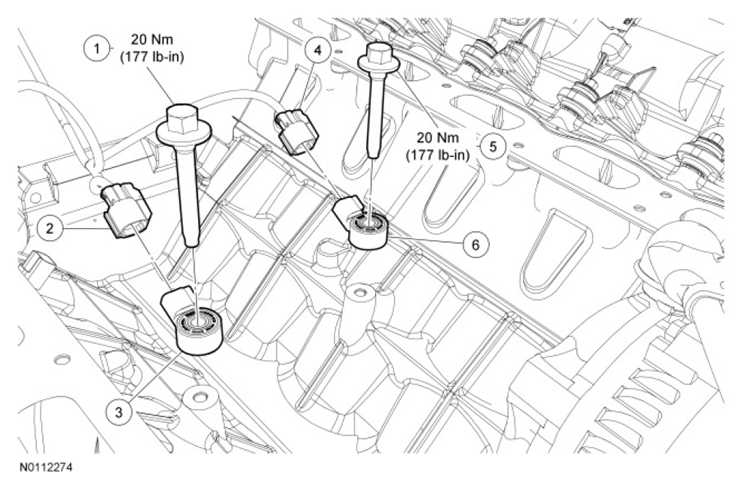

| Item | Part Number | Description |
|---|---|---|
| 1 | W500225 | RH Knock Sensor (KS) bolt |
| 2 | - | RH KS electrical connector (part of 14B485) |
| 3 | 12A699 | RH KS (gray) |
| 4 | - | LH KS electrical connector (part of 14B485) |
| 5 | W500110 | LH KS bolt |
| 6 | 12A699 | LH KS (black) |
