Intake Manifold Runner Control (IMRC) Actuator
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The air cleaner outlet pipe must be removed to perform this procedure. For additional information, refer to
INTAKE AIR DISTRIBUTION & FILTERING
.
NOTE:
Lubricate the IMRC actuator rod pivot pin with clean engine oil prior to installation.

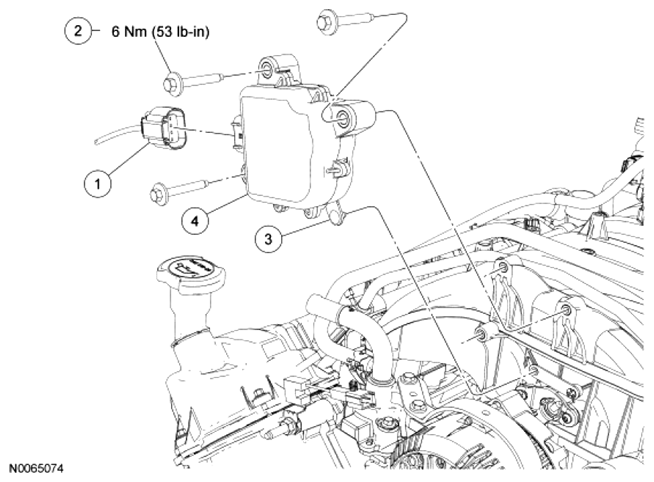

Fig 1: Intake Manifold Runner Control Actuator Replacement Components With Torque Specifications - 6.8L
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Intake Manifold Runner Control (IMRC) actuator electrical connector (part of 12C508) |
| 2 | W503917 | IMRC actuator bolt (3 required) |
| 3 | - | IMRC actuator rod pivot pin |
| 4 | 9J559 | IMRC actuator |
