Camshaft Position (CMP) Sensor

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Lubricate the CMP sensor O-ring seal with clean engine oil prior to installation.

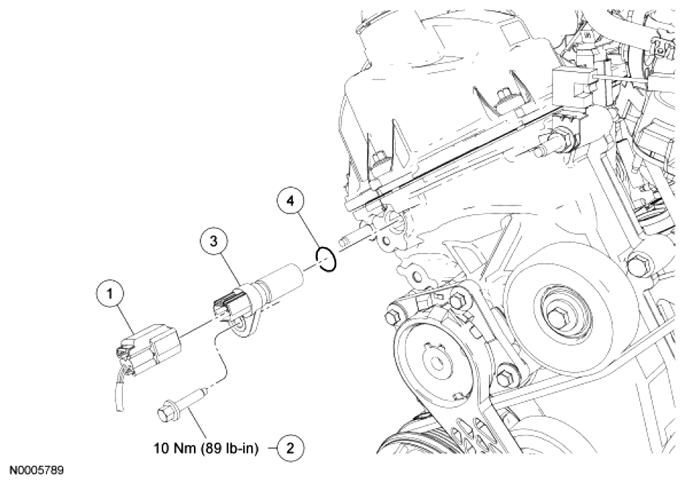

Fig 1: Camshaft Position Sensor, Connector, O-Ring Seal And Bolt With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Camshaft Position (CMP) sensor electrical connector (part of 12C508)
2	N806155	CMP sensor bolt
3	6B288	CMP sensor
4	-	CMP sensor O-ring seal (part of 6B288)
