Transmission Fluid Cooler-Water-to-Oil, Diesel: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Drain the diesel powertrain secondary cooling system. For additional information, refer to ENGINE COOLING - 6.7L DIESEL POWERTRAIN SECONDARY COOLING .
Remove the transmission fluid cooler tube secondary latches.

Fig 1: Locating Transmission Fluid Cooler Tube Secondary Latches
Courtesy of FORD MOTOR CO.

NOTE: The transmission fluid cooler outlet tube is shown in illustration the transmission fluid cooler inlet tube is similar.

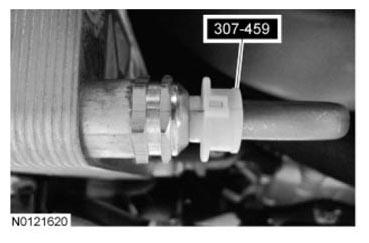

Fig 2: Disconnecting Transmission Fluid Cooler Tube Assembly Using Transmission Cooler Line Disconnect Tool

Courtesy of FORD MOTOR CO.

Using the Transmission Cooler Line Disconnect Tool, disconnect the transmission fluid cooler tube assembly.
Detach wiring harness pin-type retainer.

Fig 3: Locating Wiring Harness Pin-Type Retainer
Courtesy of FORD MOTOR CO.

NOTE: The transmission fluid cooler outlet hose is shown in illustration the transmission fluid cooler inlet hose is similar.

Fig 4: Locating Transmission Fluid Cooler Hoses

Courtesy of FORD MOTOR CO.

Disconnect the transmission fluid cooler hoses.
Remove the 3 bolts and the transmission fluid cooler.

Fig 5: Locating Transmission Fluid Cooler Bolts
Courtesy of FORD MOTOR CO.
