Transmission Fluid Cooler-Water-to-Oil, Diesel: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Install the transmission fluid cooler and the 3 bolts.
- Tighten to 17 Nm (150 lb-in).

  Fig 1: Locating Transmission Fluid Cooler Bolts
  Courtesy of FORD MOTOR CO.

NOTE: Transmission fluid cooler inlet hose shown in illustration outlet hose similar.

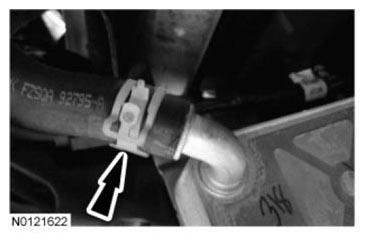

Fig 2: Locating Transmission Fluid Cooler Hoses

Courtesy of FORD MOTOR CO.

Connect the transmission fluid cooler hoses.
Attach wiring harness pin-type retainer.

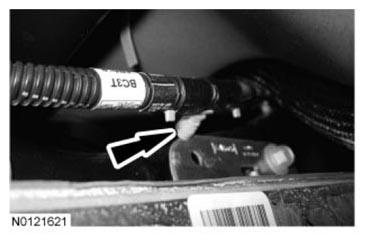

Fig 3: Locating Wiring Harness Pin-Type Retainer
Courtesy of FORD MOTOR CO.
Connect the transmission fluid cooler tube assembly.

Fig 4: Locating Transmission Fluid Cooler Tube Assembly
Courtesy of FORD MOTOR CO.
Install the transmission fluid cooler tube secondary latches.

Fig 5: Locating Transmission Fluid Cooler Tube Secondary Latches
Courtesy of FORD MOTOR CO.

NOTE: Evaluate the cooling system condition before filling the secondary cooling system. Failure to follow these instructions can result in damage to the engine.

Evaluate the secondary cooling system condition. For additional information, refer to Cooling System Condition Evaluation in ENGINE COOLING - 6.7L DIESEL POWERTRAIN SECONDARY COOLING .
Fill and bleed the diesel powertrain secondary cooling system. For additional information, refer to ENGINE COOLING - 6.7L DIESEL POWERTRAIN SECONDARY COOLING .
Top off with transmission fluid and check for leaks.
