Coolant Hoses
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

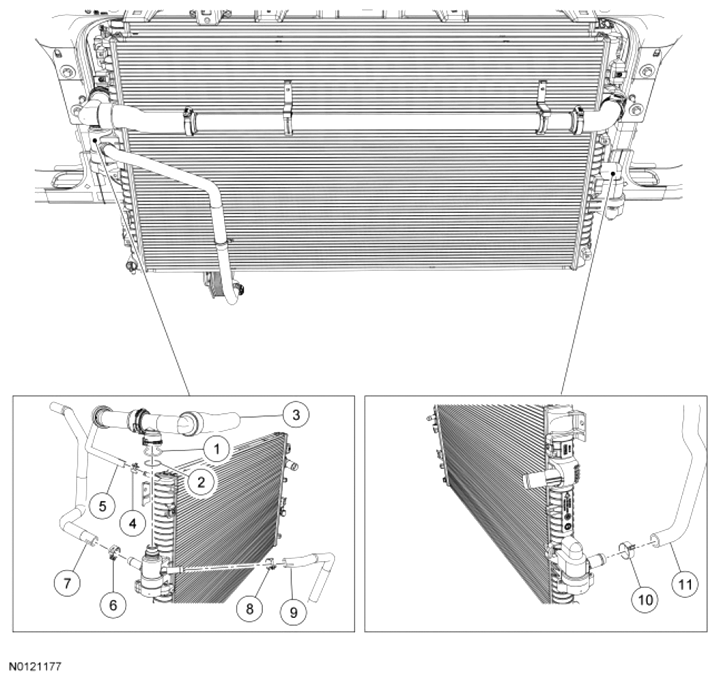

| Item | Part Number | Description |
|---|---|---|
| 1 | 8D037 | Coolant pump-to-radiator T-connection quick connect coupling spring clip |
| 2 | 8D058 | Coolant pump-to-radiator T-connection quick connect coupling O-ring seal |
| 3 | 8A582 | Coolant pump-to-radiator T-connection |
| 4 | W527383 | Degas bottle-to-radiator hose clamp |
| 5 | 8C012 | Degas bottle-to-radiator hose |
| 6 | W527362 | Radiator-to-EGR cooler hose clamp |
| 7 | 9Y438 | Radiator-to-EGR cooler hose |
| 8 | W527359 | Radiator-to-transmission fluid cooler hose clamp |
| 9 | 7H255 | Radiator-to-transmission fluid cooler hose |
| 10 | W527366 | Radiator-to-Charge Air Cooler (CAC) and fuel cooler hose clamp |
| 11 | 8C480 | Radiator-to-CAC and fuel cooler hose |
