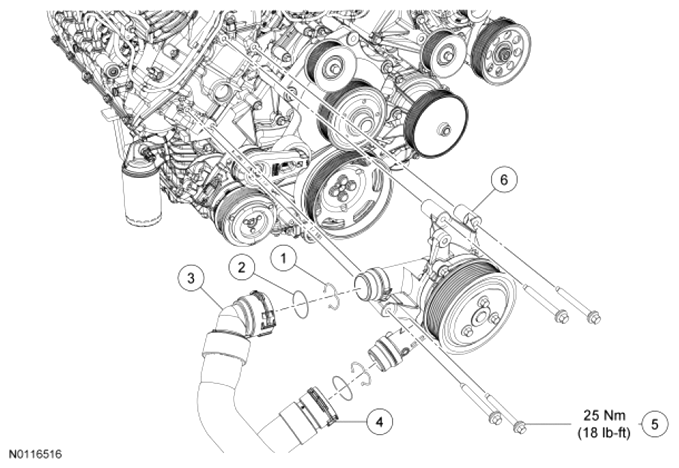

Coolant Pump with Single Generator
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8D037 | Coolant pump hose quick-connect fitting clip (2 required) |
| 2 | 8D058 | Coolant pump hose O-ring seal (2 required) |
| 3 | 8C350 | Degas bottle-to-coolant pump hose |
| 4 | 8A385 | Coolant pump-to-radiator hose |
| 5 | W705738 | Coolant pump bolt (4 required) |
| 6 | 8501 | Coolant pump |
