Coolant Pump with Dual Generator

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

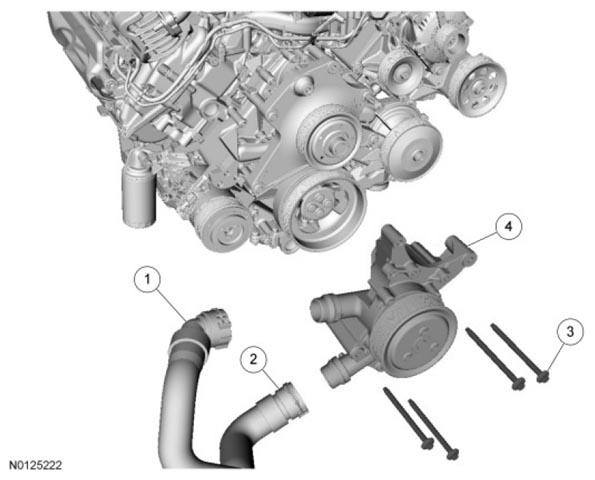

Fig 1: Identifying Coolant Pump With Dual Generator Related Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8C350	Degas bottle-to-coolant pump hose
2	8A385	Coolant pump-to-radiator hose
3	W705738	Coolant pump bolt - 25 Nm (18 lb-ft) (4 required)
4	8501	Coolant pump
