Throttle Body: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

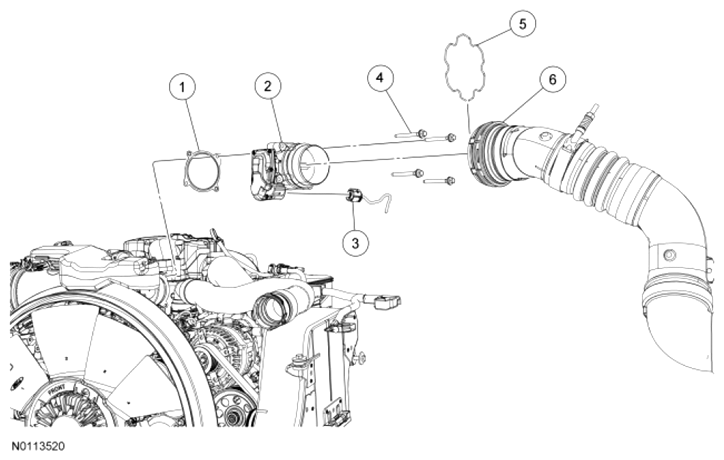

Fig 1: Identifying Throttle Body Related Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9E936	Throttle Body (TB) gasket
2	9E926	TB
3	-	TB electrical connector
4	W503285	TB bolt (4 required)
5	8B365	Charge Air Cooler (CAC) outlet tube clip
6	6F073	Charge Air Cooler (CAC) outlet tube
