Fuel Injection Pump Supply Tube: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil XO-10W30-QSD |
WSS-M2C171-E |
NOTE:
Exhaust Gas Recirculation (EGR) cooler removed for clarity.

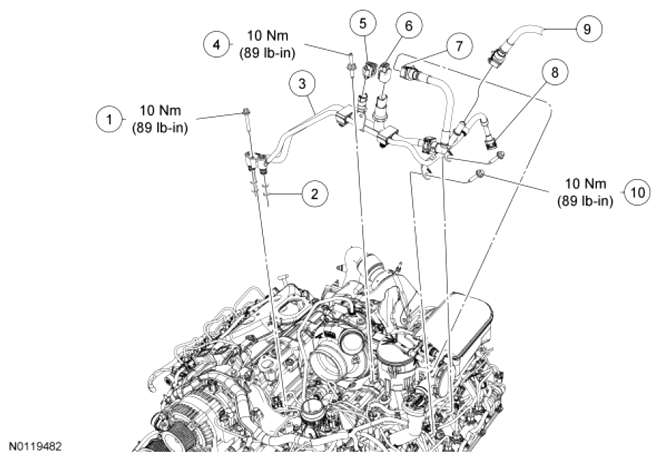

| Item | Part Number | Description |
|---|---|---|
| 1 | W500102 | Fuel injection pump supply tube manifold bolt |
| 2 | 8527 | Fuel injection pump supply tube manifold O-ring (4 required) |
| 3 | 9J280 | Fuel injection pump supply tube |
| 4 | W714647 | Fuel injection pump supply tube bracket stud bolt |
| 5 | 9F951 | Fuel temperature sensor electrical connector |
| 6 | 9S599 | Fuel pressure switch electrical connector |
| 7 | - | Fuel filter-to-fuel injection pump supply tube quick connect coupling (part or 9J280) |
| 8 | - | Fuel rail-to-fuel injection pump return tube quick connect coupling (part of 9J280) |
| 9 | - | Fuel return tube-to fuel injection pump return tube quick connect coupling (part of 9J338) |
| 10 | W503279 | Fuel injection pump supply tube bracket bolt (2 required) |
