In-Vehicle Temperature Sensor: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

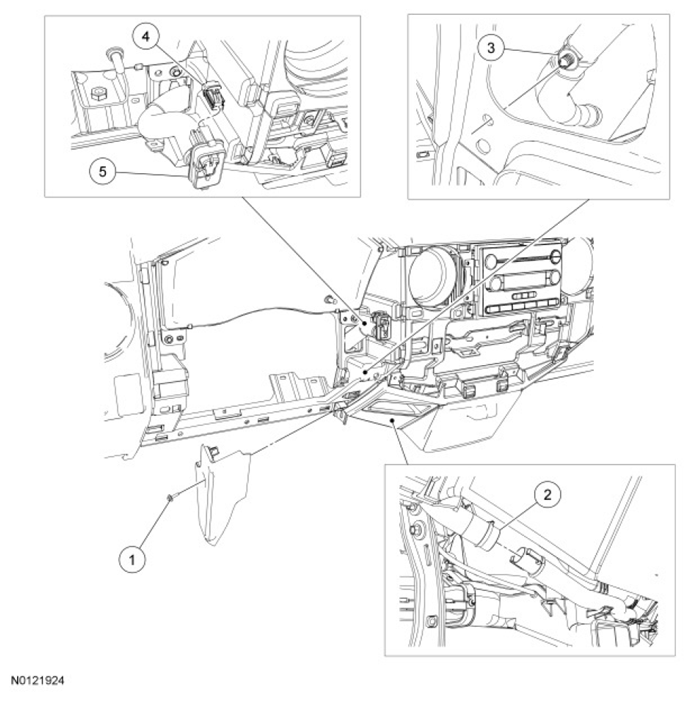

| Item | Part Number | Description |
|---|---|---|
| 1 | W707628 | Instrument panel lower support bracket cover bolt |
| 2 | - | In-vehicle temperature sensor aspirator hose connection (part of 19C734) |
| 3 | - | In-vehicle temperature sensor aspirator hose pin-type retainer (part of 19C734) |
| 4 | - | In-vehicle temperature sensor electrical connector (part of 14401) |
| 5 | 19C734 | In-vehicle temperature sensor |
