Removal and Installation
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the heater core and evaporator core housing. For additional information, refer to HEATER CORE AND EVAPORATOR CORE HOUSING .

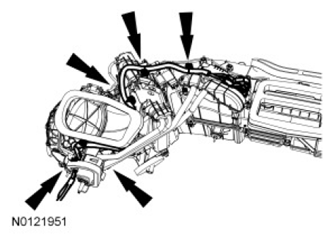

- Remove the 2 heater auxiliary electric heater battery cable nuts at the Auxiliary Heater Control Module (AHCM).
- Remove the heater core and evaporator core housing dash panel seal.
- Detach the electric heater battery cables from the heater core and evaporator core housing.
- To install, reverse the removal procedure.
