In-Vehicle Temperature Sensor

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

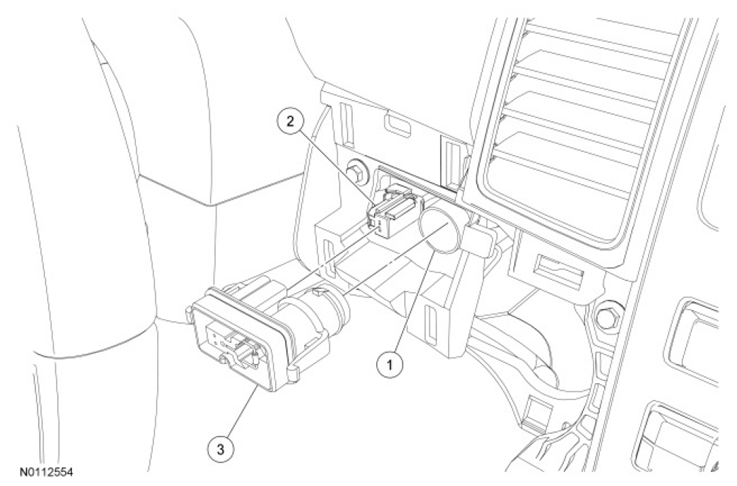

Fig 1: Identifying In-Vehicle Temperature Sensor With Aspirator Hose And Electrical Connector

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	In-vehicle temperature sensor aspirator hose (part of 19C734 kit)
2	-	In-vehicle temperature sensor electrical connector (part of 14401)
3	19C734	In-vehicle temperature sensor
