Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Compressor-side compressor-to-condenser discharge line

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

    Both compressor-to-condenser discharge lines

  2. Recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
  3. Remove the Air Cleaner (ACL) cover.
    1. Release the 4 ACL cover clips.
    2. Detach the wire harness clip.
    3. Disconnect the Mass Air Flow (MAF) sensor electrical connector.
    4. Loosen the ACL outlet tube clamp.
    5. Remove the ACL cover.

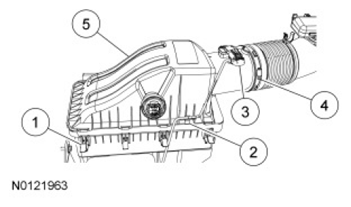

      Fig 1: Identifying ACL Cover Clips, MAF Sensor Electrical Connector, ACL Outlet Tube Clamp And ACL Cover
      G07484614Courtesy of FORD MOTOR CO.
  4. Remove the condenser inlet jumper line fitting and disconnect the fitting.
    • Discard the O-ring seal and gasket seal.
    • To install, tighten to 15 Nm (133 lb-in).

    Compressor-side compressor-to-condenser discharge line

  5. Remove the RH fender splash shield. For additional information, refer to FRONT END BODY PANELS .
  6. Detach the wire harness retainer from the A/C compressor discharge fitting stud.
    Fig 2: Locating A/C Compressor Discharge Fitting Stud Wire Harness Retainer
    G07484612Courtesy of FORD MOTOR CO.
  7. Remove the A/C compressor discharge fitting nut and disconnect the fitting.
    • Discard the O-ring seal and gasket seal.
    • To install, tighten to 15 Nm (133 lb-in).
  8. Disconnect the A/C pressure transducer electrical connector.

    Condenser-side compressor-to-condenser discharge line

  9. Remove the radiator grille. For additional information, refer to EXTERIOR TRIM AND ORNAMENTATION .
  10. Remove the A/C condenser inlet fitting nut and disconnect the fitting.
    • Discard the O-ring seal and gasket seal.
    • To install, tighten to 15 Nm (133 lb-in).
  11. Remove the condenser-side compressor-to-condenser discharge line.

    Both compressor-to-condenser discharge lines

  12. To install, reverse the removal procedure.
  13. Evacuate, leak test and charge the refrigerant system. For additional information, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
