Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
Detach the wire harness retainer from the A/C compressor discharge fitting stud.

Fig 1: Locating A/C Compressor Discharge Fitting Stud Wire Harness Retainer
Courtesy of FORD MOTOR CO.
Remove the A/C compressor discharge fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.
- To install, tighten to 15 Nm (133 lb-in).
Disconnect the A/C pressure transducer electrical connector.
Remove the RH radiator air deflector upper pin-type retainer and position the top of the air deflector aside.

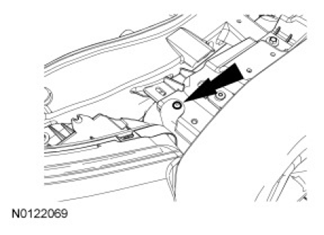

Fig 2: Locating RH Radiator Air Deflector Upper Pin-Type Retainer
Courtesy of FORD MOTOR CO.
Remove the condenser inlet fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.
- To install, tighten to 15 Nm (133 lb-in).
Remove the compressor-to-condenser discharge line.
To install, reverse the removal procedure.
- Install new O-ring seals and gasket seals.
- Add the correct amount of clean PAG oil to the refrigerant system. For additional information, refer to the Refrigerant Oil Adding procedure in CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
Evacuate, leak test and charge the refrigerant system. For additional information, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
