Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

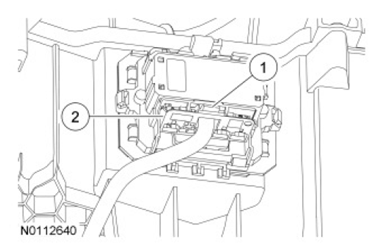

Fig 1: Identifying Blower Motor Speed Control With Electrical Connector

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Blower motor speed control electrical connector (part of 19D605)
2	19E624	Blower motor speed control

Remove the heater core and evaporator core housing. For additional information, refer to HEATER CORE AND EVAPORATOR CORE HOUSING .
Disconnect the blower motor speed control electrical connector.
1. Release the blower motor speed control electrical connector retaining tab.
2. Disconnect the blower motor speed control electrical connector.

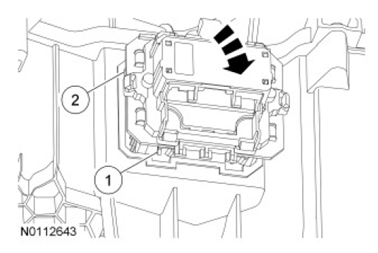

  Fig 2: Identifying Blower Motor Speed Control Electrical Connector And Retaining Tab
  Courtesy of FORD MOTOR CO.
Detach the blower motor speed control from the heater core and evaporator core housing.
1. Gently depress the retaining tab.
2. Slide the blower motor speed control towards the driver side of the vehicle to release it from the heater core and evaporator core housing.

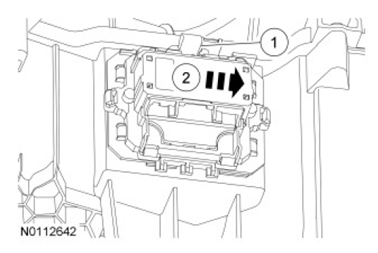

  Fig 3: Sliding Blower Motor Speed Control
  Courtesy of FORD MOTOR CO.
Remove the blower motor speed control.
1. Position the blower motor speed control to align the retaining tabs on the control with the notches on the heater core and evaporator core housing.
2. Remove the blower motor speed control.

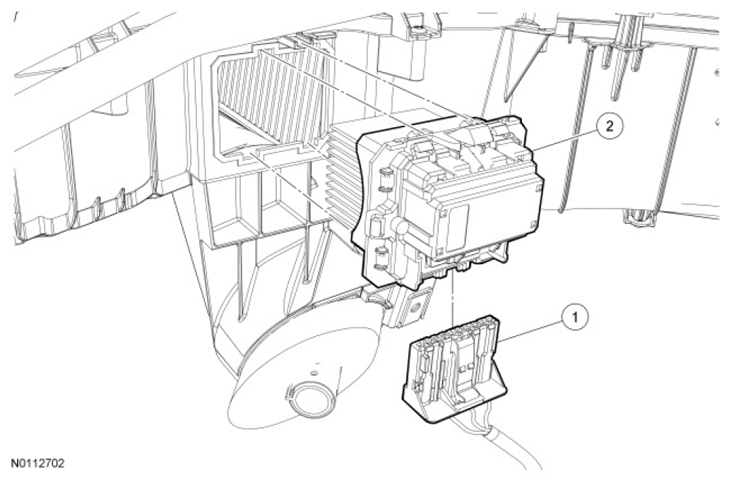

  Fig 4: Removing Blower Motor Speed Control
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
