Thermostatic Expansion Valve (TXV)

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

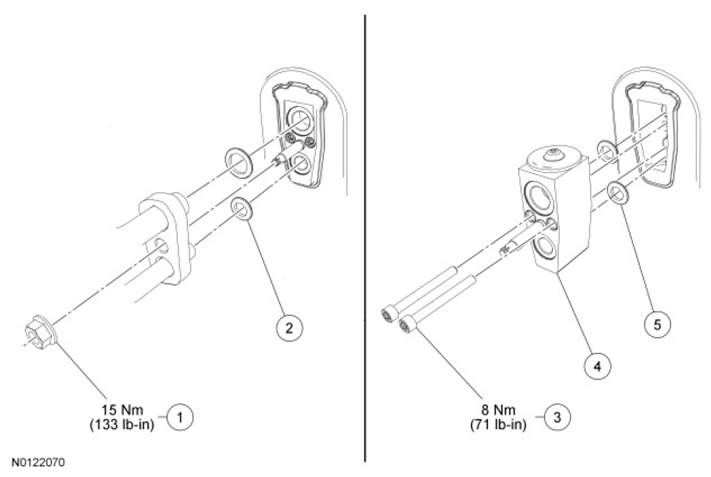

Fig 1: Thermostatic Expansion Valve Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520413	TXV fitting nut
2	19B596	Gasket seal (2 pieces from kit required)
3	-	TXV bolt (2 required)
4	-	TXV
5	-	Gasket seal (2 pieces from kit required)
