Reductant Injector: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When reinstalling the reductant injector, a new reductant injector gasket must be installed.

Install a new gasket and the reductant injector.
- Tighten to 25 Nm (18 lb-ft).
Connect the reductant injector electrical connector.

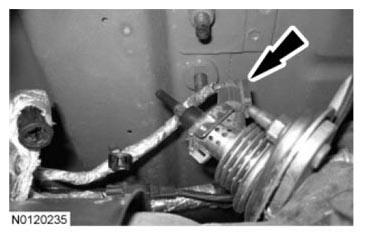

Fig 1: Locating Reductant Injector Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the reductant pressure line to the reductant injector.

Fig 2: Locating Reductant Pressure Line
Courtesy of FORD MOTOR CO.

NOTE: Make sure the reductant pressure line heat shield is installed back in position. Failure to do so can cause system overheating or freeze up.

Fig 3: Locating Reductant Pressure Connector On Reductant Injector

Courtesy of FORD MOTOR CO.

Slide the reductant pressure line heat shield back on the reductant pressure connector on the reductant injector.
