Exhaust Gas Recirculation (EGR) Cooler - 6.7L Diesel: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Orange Antifreeze/Coolant Concentrated VC-3-B (US); CVC-3-B2 (Canada) |
WSS-M97B44-D |

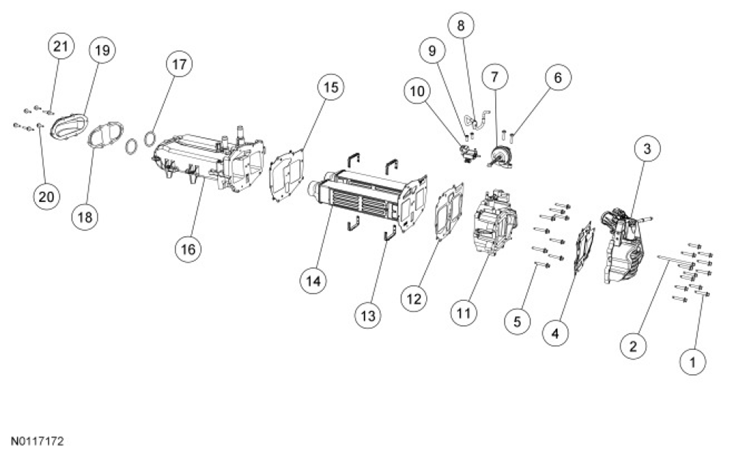

| Item | Part Number | Description |
|---|---|---|
| 1 | W500700 | EGR valve bolt (12 required) |
| 2 | W714165 | EGR valve bolt (part of 9P455) |
| 3 | 9D475 | EGR valve |
| 4 | 9D476 | EGR valve gasket |
| 5 | W714989 | Bypass bolt (part of 9P455) (9 required) |
| 6 | W505535 | Bypass actuator screw (part of 9U433) (2 required) |
| 7 | 9G488 | Bypass actuator (part of 9U433) |
| 8 | 9D430 | Bypass valve solenoid-to-bypass actuator vacuum hose (part of 9U433) |
| 9 | W505524 | Bypass valve solenoid bolt (part of 9U433) (2 required) |
| 10 | 9F454 | Bypass valve solenoid (part of 9U433) |
| 11 | - | Bypass (part of 9U433) |
| 12 | 9E464 | Bypass gasket (part of 9P455) |
| 13 | 9U429 | EGR cooler core insulator (part of 9F464 or 9V425) (4 required) |
| 14 | - | EGR cooler core (part of 9F464 or 9V425) |
| 15 | - | EGR cooler-to-EGR cooler housing gasket (part of 9F464 or 9P455) |
| 16 | 9V426 | EGR cooler housing (part of 9F464) |
| 17 | - | EGR cooler O-ring seal (part of 9F464 or 9P455) (2 required) |
| 18 | 9H454 | EGR cooler end tank gasket (part of 9F464 or 9P455) |
| 19 | 9V426 | EGR cooler end tank (part of 9F464) |
| 20 | W500015 | EGR cooler end tank bolt (4 required) |
| 21 | W714617 | EGR cooler end tank stud bolt (2 required) |
